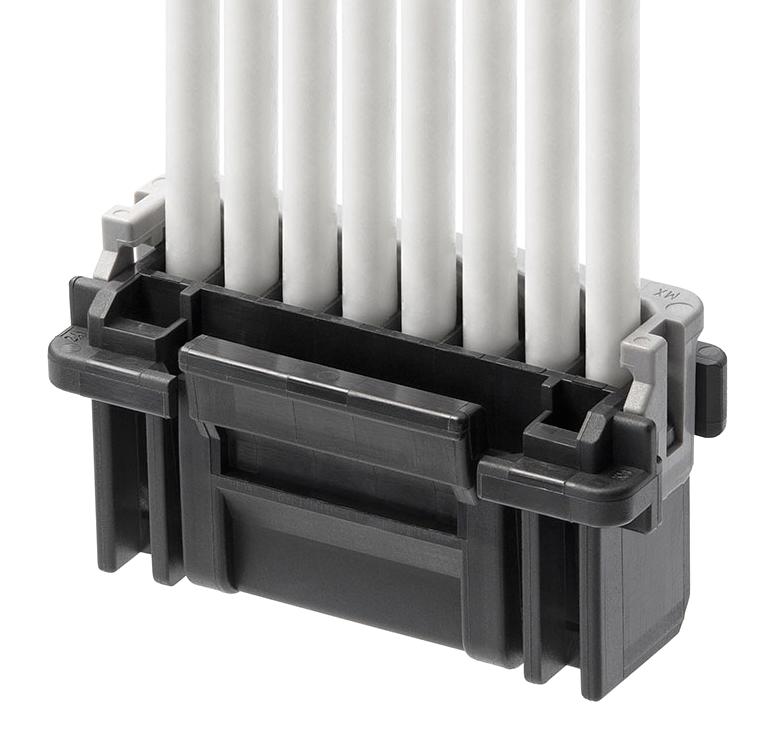

MOLEX 2127242081 Micro-One Wire-to-Board Connector
The MOLEX 212724-2081 is a Micro-One wire-to-board receptacle housing within the 212724 series. Designed for power applications, this connector features 8 circuits and a 2.00mm mating interface pitch. It's constructed with a black polyamide resin and is glow-wire capable, indicating suitability for specific safety standards. The connector is polarized and includes a lock to the mating part, ensuring a secure and reliable connection. It is RoHS compliant and does not contain SVHC substances, making it an environmentally responsible choice for various industrial applications.
MOLEX 2127242081 Micro-One Wire-to-Board Connector Specifications:
- overview: Micro-One Wire-to-Board Connector System
- description: Micro-One Wire-to-Board Receptacle Housing, 2.00mm Pitch, Glow-Wire Capable, 8 Circuits
- circuits_maximum: 8
- color_resin: Black
- gender: Female
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Polyamide
- net_weight_mg: 554.590
- number_of_rows: 1
- packaging_type: Bag
- panel_mount: No
- pitch_mating_interface_mm: 2.00
- polarized_to_mating_part: No
- stackable: No
- temperature_range_operating_c: -40° to +105°
- upc: 193264613892
- series: 212724 Series
- application: Power, Wire-to-Board
- product_family: Crimp Housings
- mates_with: Micro-One TPA Retainer 212725, MicroOne Vertical Header 217063, Micro-One Right-Angle Header 217064
- use_with: Micro-One Female Crimp Terminal 56134
- halogen_free_status: Not Low-Halogen
- elv: Not Relevant
- rohs: Compliant
- china_roh: Green Image
- phthalates: Not Contained
- reach_svhc: Not Contained
Buy the 212724-2081 MOLEX Micro-One Wire-to-Board Connector | myMectronic
Purchase the MOLEX 212724-2081 Micro-One Wire-to-Board Connector securely and conveniently online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2127242081?
You can click on the BUY or RFQ button to purchase 2127242081 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2127242081?
You can download the 2127242081 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2127242081?
MOLEX
