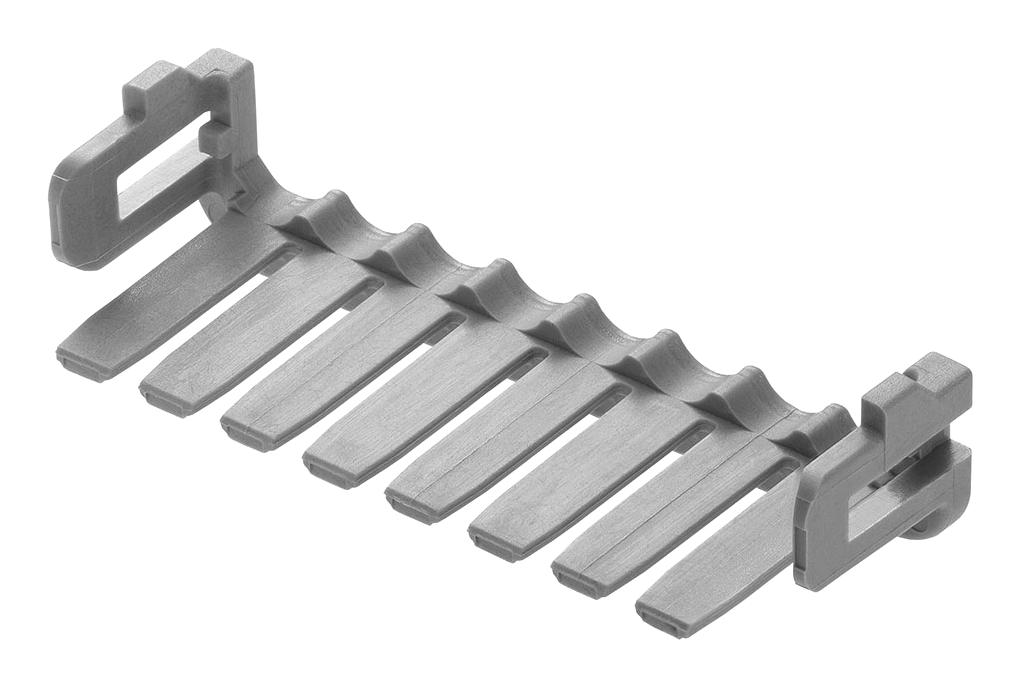

MOLEX 2127252070 Terminal Position Assurance Retainer
The 212725 series is a 2.00mm pitch Micro-One terminal position assurance retainer that secures and locks terminals to ensure proper contact and safety. Crafted from grey polyamide resin, it is glow wire capable, enhancing safety in high-temperature environments. Compatible with Micro-One receptacle housing, this retainer locks to the mating part, ensuring reliable connections. Designed to operate within a temperature range of -40°C to +105°C, it is UL certified, making it suitable for strict safety standards and various industrial applications, providing secure, dependable electrical connections.
MOLEX 2127252070 Terminal Position Assurance Retainer Specifications:
- Series: 212725
- Component Type: Terminal Position Assurance Retainer
- Number of Circuits: 7
- Color - Resin: Gray
- Material - Resin: Polyamide
- Operating Temperature Range: -40°C to +105°C
- Lock to Mating Part: Yes
- Reference - Drawing Numbers: 2127259200-SPK-200
- RoHS Compliant, Halogen-Free
- UL Certification: E29179
- Use With: Micro-One Receptacle Housing 212724
- Glow Wire Capable: Yes
- Package Type: Bag
- Net Weight: 103.410 mg
Buy the Molex Series 212725 Terminal Position Assurance Retainer: 2127252070
Secure your electrical connections with the Molex Series 212725 terminal position assurance retainer. Designed for 2.00mm pitch Micro-One systems, it features glow wire capability, UL certification, and a robust polyamide body that withstands temperatures from -40°C to +105°C. This retainer locks terminals firmly in place, ensuring safety and proper contact in industrial and electronic systems. Whether for new projects or maintenance, buy this dependable retainer online now for fast delivery and consistent performance in your wiring and connection applications.
Order your Molex Series 212725 terminal position assurance retainer today and ensure secure, reliable connections in your electrical assemblies.
