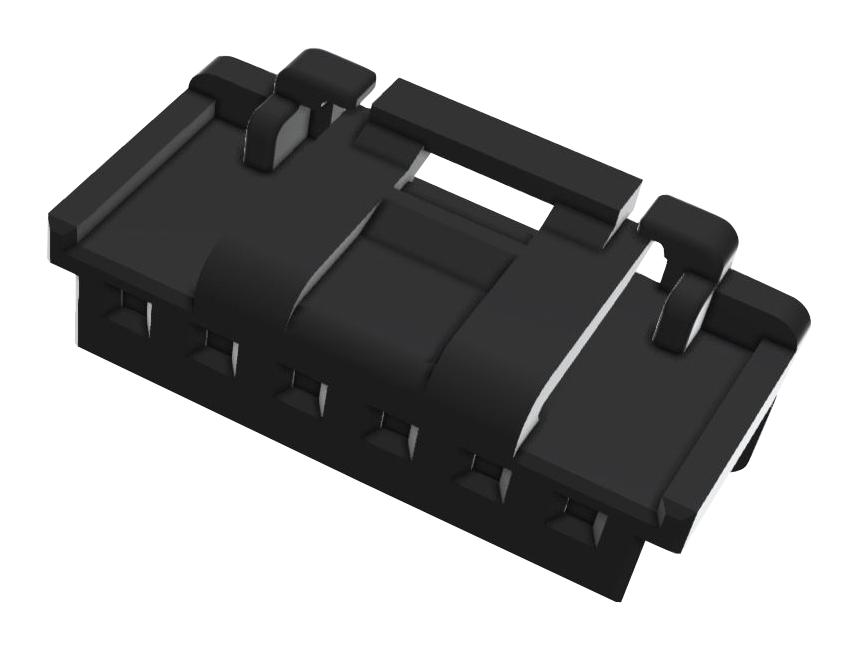

MOLEX 5023510601 Wire-to-Board Receptacle
The DuraClik Wire-to-Board Receptacle Housing is a reliable single-row connector featuring six circuits, designed for secure electrical connections in electronic assemblies. Its inner-locking system enhances connection stability, supported by tail protection for durability. Suitable for various applications, this black receptacle is RoHS and ELV compliant, operating effectively within a temperature range of -40°C to +105°C. It handles a maximum current of 3A per contact, making it an ideal choice for wire-to-board connections needing secure, space-efficient, and environmentally compliant solutions.
MOLEX 5023510601 Wire-to-Board Receptacle Specifications:
- Circuits: 6
- Color: Black
- Gender: Receptacle
- Inner-locking system: Yes
- Tail protection: Yes
- Net weight: 0.267 grams
- Number of rows: 1
- Packaging: Bag
- Pitch - Mating Interface: 2.00mm
- Operating temperature range: -40°C to +105°C
- Maximum Current per contact: 3A
- RoHS, ELV, China RoHS, REACH SVHC compliant
- Halogen-Free: No
- Material: Resin
- Contact Material: Not specified
- Reference drawing: PK-502351-001-001
Buy the Buy Molex DuraClik Wire-to-Board Receptacle Housing Part Number 5023510601 Online
Purchase the Molex DuraClik Wire-to-Board Receptacle Housing with six circuits today online for a dependable connection solution. Featuring an inner-locking system and tail protection, it ensures secure electrical connections in various electronic applications. With a compact 2.00mm pitch, maximum current capacity of 3A per contact, and operation from -40°C to +105°C, this black connector is RoHS, ELV, and China RoHS compliant. Ideal for secure, space-efficient, and environmentally friendly assembly needs.
Order your Molex Series502351 5023510601 black wire-to-board connector today and secure your electronic projects with reliable, environmentally compliant solutions.
Frequently Asked Questions
Where can I buy MOLEX 5023510601?
You can click on the BUY or RFQ button to purchase 5023510601 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 5023510601?
You can download the 5023510601 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 5023510601?
MOLEX
