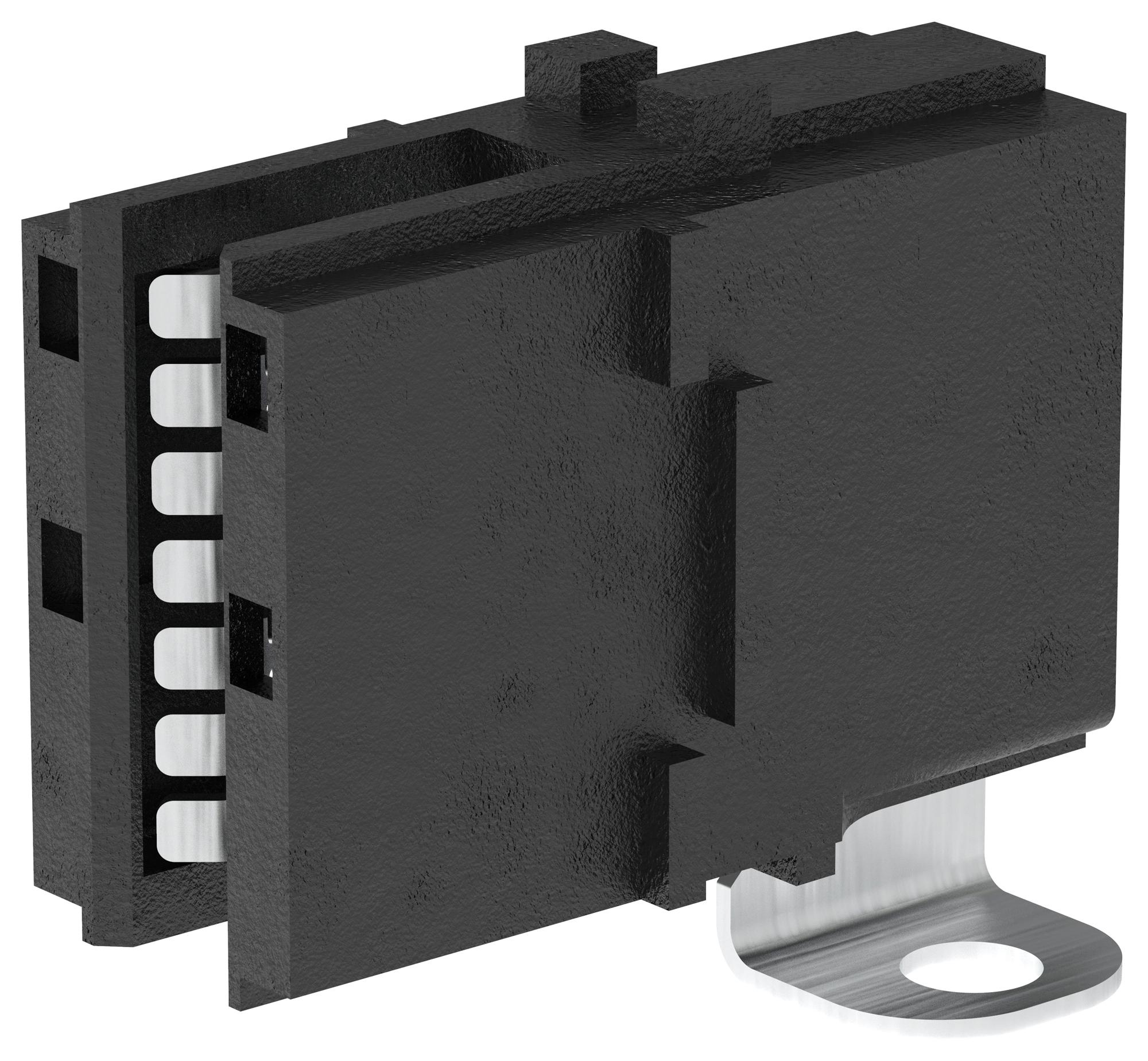

MOLEX 2131910001 PowerBar Connector
The PowerPlane busbar receptacle assembly features a right-angle design with through-hole and screw mount compatibility for 3mm and 3.18mm bus bars. Constructed from durable black liquid crystal polymer resin, it supports up to 100 mating cycles and is polarized for secure PCB attachment. Made from copper alloy with silver-plated contacts and tin-plated terminations, it operates within -40°C to +105°C, handling up to 200A maximum current and 600VAC voltage. Ideal for power distribution in industrial and electronic applications with reliable performance and robust construction.
MOLEX 2131910001 PowerBar Connector Specifications:
- Material - Metal: Copper Alloy
- Material - Plating Mating: Silver
- Material - Plating Termination: Tin
- Material - Resin: Liquid Crystal Polymer
- Color - Resin: Black
- Durability (mating cycles max): 100
- Operating Temperature Range: -40°C to +105°C
- Maximum Current per Contact: 200A
- Maximum Voltage: 600VAC
- Orientation: Right Angle
- PCB Thickness - Recommended: Not specified
- Packaging Type: Tray
- Guide to Mating Part: Not specified
- Lock to Mating Part: No
- Polarized to PCB: Yes
- Stackable: No
- Net Weight: 11.965 grams
Buy the Molex Series PowerPlane PowerConnectors: 2131910001
Enhance your power distribution system with the Molex PowerBar Connector, model 2131910001. Its right-angle, screw-mount design ensures secure, efficient connections for 3mm and 3.18mm bus bars. Crafted from durable materials with silver and tin plating, it offers reliable contact integrity and excellent electrical performance. Capable of handling up to 200A at 600VAC, it operates safely within -40°C to +105°C. Perfect for industrial power management, this connector guarantees durability, ease of installation, and consistent power delivery for your equipment.
Buy Molex 2131910001 now and experience unmatched reliability and performance in power distribution applications.
Frequently Asked Questions
Where can I buy MOLEX 2131910001?
You can click on the BUY or RFQ button to purchase 2131910001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2131910001?
You can download the 2131910001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2131910001?
MOLEX
