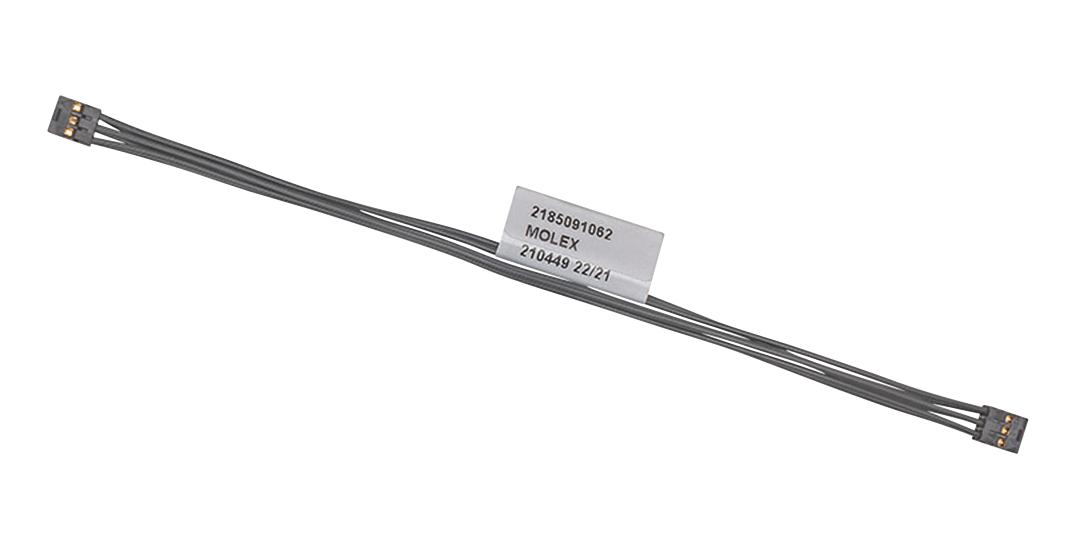

MOLEX 2185091083 Milli-Grid Cable Assembly
The MOLEX 218509-1083 is a Milli-Grid-to-Milli-Grid Off-the-Shelf (OTS) cable assembly designed for secure and efficient connections. With a 2.00mm pitch, dual-row layout, and 300.00mm length, this assembly provides a robust solution for various industrial applications. It is RoHS compliant and features a black resin construction for durability and aesthetic appeal. The assembly is designed for female-to-female connections and utilizes a crimp or compression termination interface.
MOLEX 2185091083 Milli-Grid Cable Assembly Specifications:
- overview: Milli-Grid Connector System
- description: Milli-Grid-to-Milli-Grid Off-the-Shelf (OTS) Cable Assembly
- pitch_mating_interface: 2.00mm
- length: 300.00mm
- circuits_loaded: 8
- color: Black
- gender: Female-Female
- material_metal: Copper Alloy
- material_plating: Matte Tin
- material_resin: Polyester
- number_of_rows: 2
- packaging_type: Bag
- current_maximum_per_contact: 2.0A
- voltage_maximum: 125V AC (RMS)/DC
- wire_size_awg: 24
- wire_insulation_diameter_max: 1.40mm
- wire_cable_type: UL 10002
- termination_interface_style: Crimp or Compression
Buy the 218509-1083 MOLEX Milli-Grid Cable Assembly | myMectronic
Purchase the MOLEX 218509-1083 cable assembly securely and reliably online.
