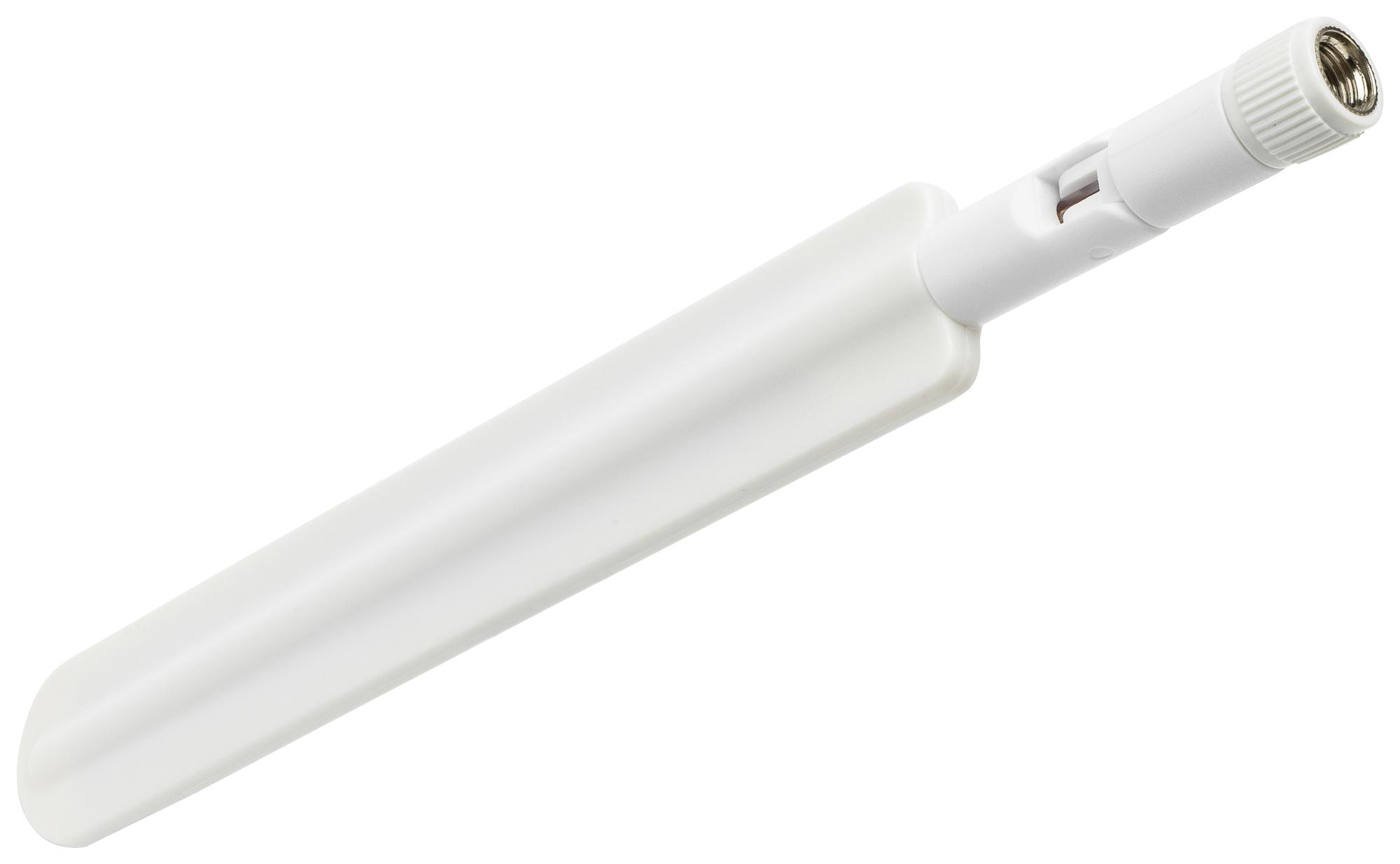

MOLEX 2135231001 LTE Cellular Antenna
The MOLEX 213523-1001 is a hinged external antenna specifically engineered for LTE cellular applications. This antenna, operating within the 698MHz to 2.7GHz frequency range, provides reliable signal transmission and reception. It features an SMA male connector for easy integration and boasts an omnidirectional radiation pattern, ensuring broad coverage. With a peak gain of 2.3 dBi at 698 MHz and 4.8 dBi at 1710 MHz, this antenna delivers robust performance in various cellular communication scenarios. Its low-halogen status and compliance with RoHS directives further enhance its appeal for environmentally conscious applications.
MOLEX 2135231001 LTE Cellular Antenna Specifications:
- Product Family: Antennas
- Series: 213523
- Component Type: External Antenna
- Function: Signal
- Mates With: SMA Female Receptacle
- Overview: LTE Cellular Antennas
- Protocol: Cellular
- Type: External Antenna
- UPC: 193264424566
- Length: 171.50mm
- Mounting Style: N/A
- Net Weight: 14.143/g
- Packaging Type: PET Bag
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Width: 19.40mm
- Band#1 F_End (MHz): 960
- Band#1 F_Start (MHz): 698
- Band#2 F_End (MHz): 2690
- Band#2 F_Start (MHz): 1710
- Electrical Connectivity: Cable
- Peak Gain (dBi): 2.3 @ 698 MHz, 4.8 @ 1710 MHz
- Return Loss - S11 (dB): < -10, < -5
- Total Efficiency: >55% @ 698 MHz, >70% @ 1710 MHz
- Application Specification: 2135230001-000
- Packaging Specification: 2135230001-001
- Product Specification: 2135230001-001
- Sales Drawing: 2135230001-000
- EU ELV: Not Relevant
- EU RoHS: Compliant with Exemption 6(c)
- China RoHS: Not Contained
- REACH SVHC: Lead
- Halogen-Free Status: Low-Halogen
