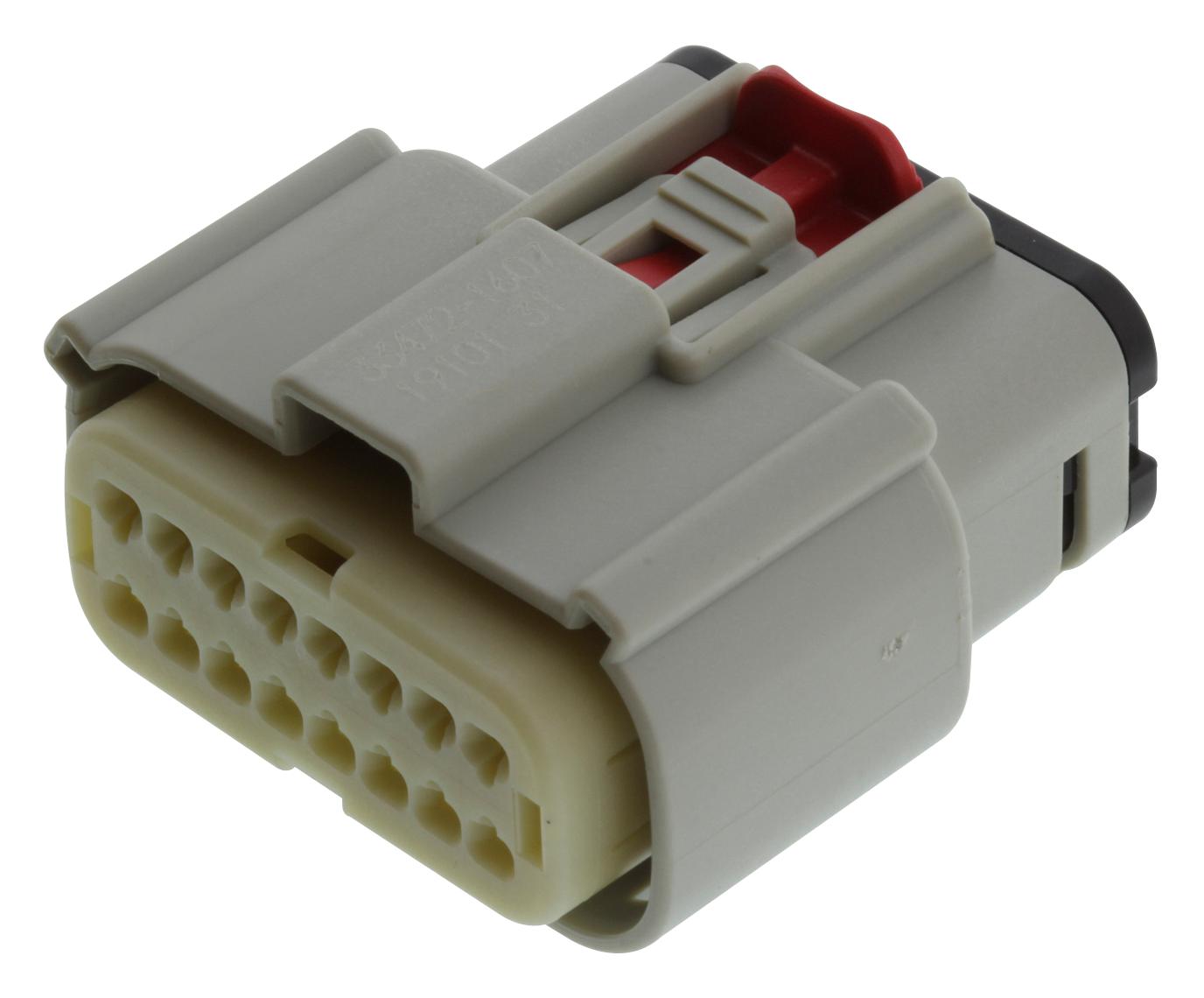

MOLEX 334721607 MX150 Sealed Connector
The MOLEX 33472-1607 is a robust MX150 Sealed Female Connector, part of the MX150 Sealed and Unsealed Connector System. This connector is designed for demanding applications requiring a secure and reliable connection, such as in automotive and industrial wiring systems. It features a dual-row design with 16 circuits, polarization B for correct mating, and connector position assurance (CPA) to prevent accidental disconnections. The connector is constructed with modified polystyrene resin and operates within a temperature range of -40°C to +125°C, making it suitable for harsh environments. It is RoHS compliant and halogen-free, meeting environmental standards.
MOLEX 334721607 MX150 Sealed Connector Specifications:
- overview: MX150 Sealed and Unsealed Connector System
- description: MX150 Sealed Female Connector, Dual Row, 16 Circuits, Polarization B, with Connector Position Assurance, Light Gray
- series: 33472
- application: Power, Wire-to-Board, Wire-to-Wire
- comments: with Connector Position Assurance (CPA)
- circuits_maximum: 16
- color: Resin Gray (Light), Natural
- gender: Receptacle
- glow_wire_capable: No
- keying_to_mating_part: Yes
- lock_to_mating_part: Yes
- material: Resin Modified Polystyrene
- alloy: N/A
- net_weight_g: 18.400
- number_of_rows: 2
- packaging_type: Individual Cell Panel Mount
- pitch_mating_interface: 3.50mm
- polarized_to_mating_part: Yes
- stackable: No
- temperature_range_operating_c: -40° to +125°
- eu_elv_compliant: Yes
- eu_rohs: Compliant
- china_rohs: Not Relevant
- reach_svhc: Not Contained
- halogen_free_status: Not Relevant
- mates_with: ['MX150 Male Sealed Connector 33482', 'MX150 Right-Angle Header 348300804', 'MX150 Male Bulkhead Twist-Lock Sealed Connector 348408420']
- use_with: ['MX150 Female Terminal 33012 , 33001', 'MX150 Cavity Plug Sealed 343450001', 'MX150 Backshell 349511611 , 349501621']
- lead_free_process_capability: Yes
- application_specification_1: AS-33472-100-001
- application_specification_2: AS-33611-001-001
- packaging_specification_1: PK-31300-903-001
- packaging_specification_2: PK-33472-001-001
- product_specification: PS-33472-000-001
- sales_drawing_1: SD-33472-0001-001
- sales_drawing_2: SD-33472-0002-002
