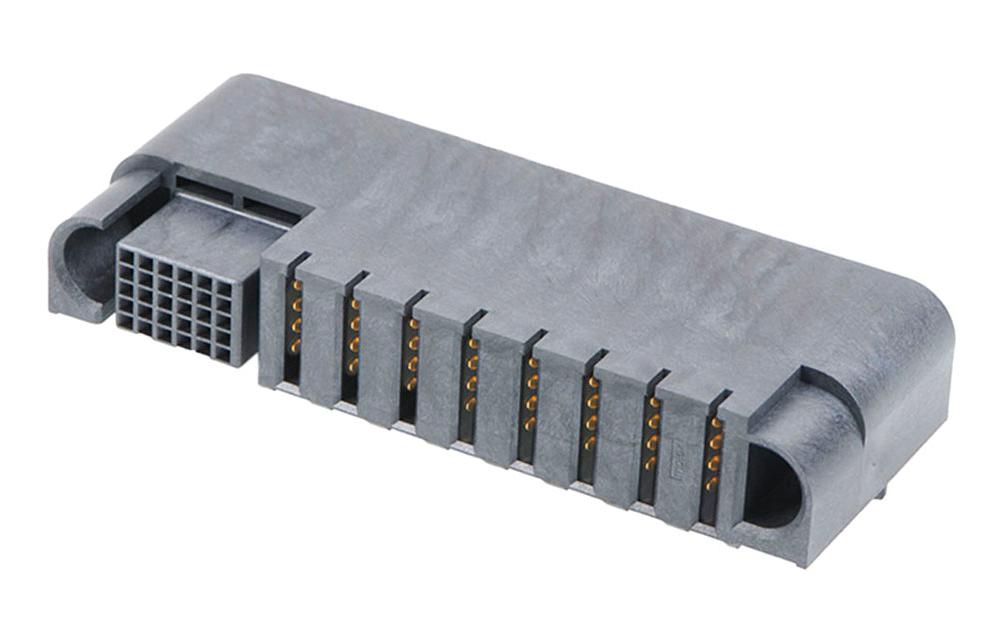

MOLEX 2141150010 Power Signal Connector
Extreme Guardian HD power connectors provide high current density hybrid power and signal solutions in a low-profile, durable design. Featuring a right-angle receptacle with guide receivers, eight power circuits, and thirty signal circuits, these connectors support both AC and DC high-voltage applications up to 125V. Gold-plated contacts ensure low resistance, while a robust construction with LCP housing and copper alloy contacts guarantees thermal and mechanical reliability. Rated for up to 80A per blade and operating from -40°C to +125°C, they are ideal for telecommunications, data centers, industrial, and networking environments demanding compact, high-performance power solutions.
MOLEX 2141150010 Power Signal Connector Specifications:
- Configuration: Power and Signal hybrid, right-angle receptacle
- Number of power circuits: 8
- Number of signal circuits: 30
- Current capacity: 80A per blade
- Voltage rating: 125V
- Mating cycles: at least 200
- Material - Contact: Copper alloy with gold plating
- Housing material: Liquid Crystal Polymer
- Operating temperature: -40°C to +125°C
- Color: Black
- Durability: Up to 200 mating cycles
- PCB Mounting: Guide receivers, PCB pegs for secure mounting
- Dimensions: Centerline spacing of 5.15mm
- Rated for high temperatures: up to 125°C
- Certification: UL (E29179), CSA
- Termination: Tin solder tails
- Net weight: Not specified
Buy the Buy Molex Power Signal Connector Part Number 2141150010 Online
Purchase the Molex power signal connector 2141150010 online for reliable high current and signal transmission in compact designs. This high-performance connector features a right-angle receptacle with guide receivers, 8 power circuits supporting up to 80A, and 30 signal circuits ensuring efficient operation in industrial, telecommunications, and data center applications. Its durable construction with gold-plated contacts, a robust LCP housing, and nickel underplating provides thermal stability up to 125°C and at least 200 mating cycles. Order now for seamless integration into your high-demand projects, ensuring safety, performance, and space-saving design.
Order your Molex Series214115 2141150010 power and signal connector today and enjoy reliable, high-current solutions for demanding industrial and networking projects.
