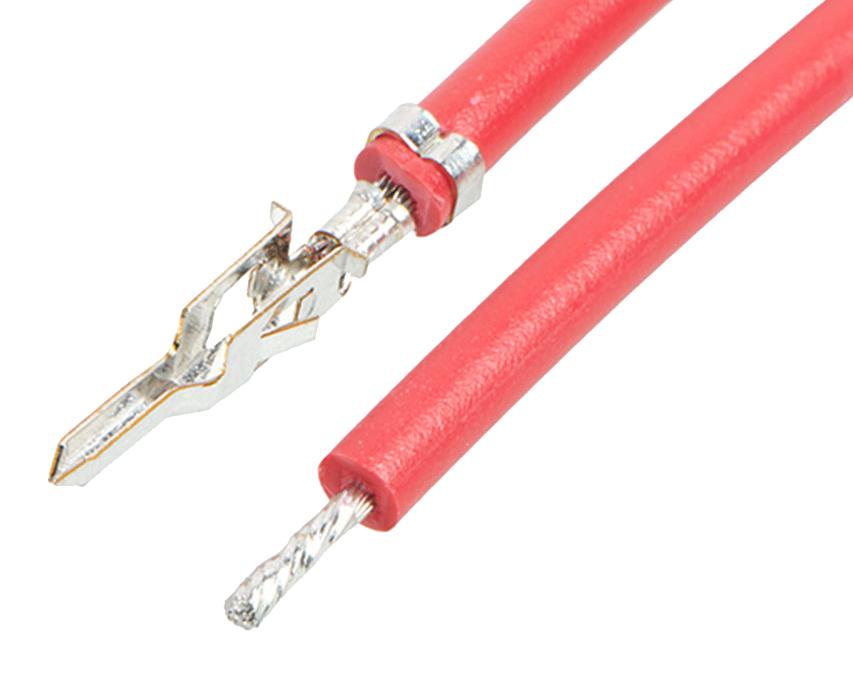

MOLEX 2153432103 Mini-Fit Jr. Pigtail
The MOLEX 215343-2103 is a pre-crimped lead assembly designed for power and wire-to-wire connections. This Mini-Fit Jr. pigtail provides a convenient, ready-to-use solution, eliminating the need for on-site crimping. The assembly includes a tin-plated male-to-pigtail connector, a 225mm length of 20 AWG UL 1015 wire, and is suitable for applications requiring a maximum current of 9.0A and a maximum voltage of 600V. It is RoHS compliant and features a red resin color for easy identification.
MOLEX 2153432103 Mini-Fit Jr. Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 2.944/g
- packaging_type: Bag
- end_type: Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 20
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560516
- sales_drawing: 2153431101-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
