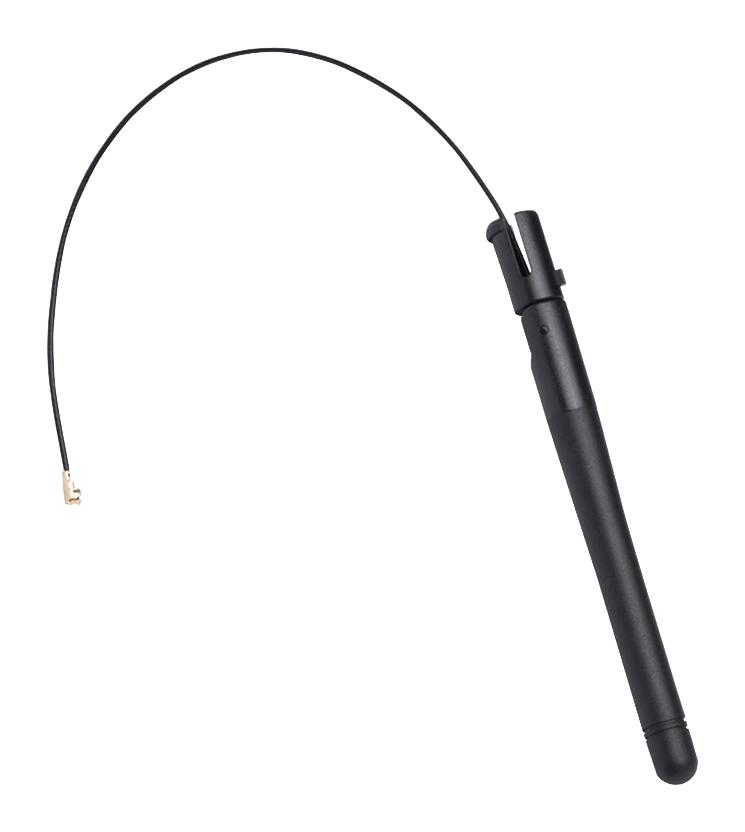

MOLEX 2144150001 2.4GHz Wi-Fi/BT Antenna
The MOLEX 214415-0001 is a 2.4GHz Wi-Fi/Bluetooth hinged external antenna designed for Internet of Things (IoT) applications. This antenna features an SMA male connector and a black finish, providing a robust and aesthetically pleasing solution. It boasts a peak gain of 5.3 dBi at 2.4 GHz, ensuring reliable wireless connectivity. The antenna's omnidirectional radiation pattern and linear polarization make it suitable for a wide range of applications requiring wireless communication, such as smart home devices, industrial sensors, and wearable technology. It is RoHS compliant and offers a total efficiency of over 80% at 2.4 GHz, ensuring optimal performance and energy efficiency.
MOLEX 2144150001 2.4GHz Wi-Fi/BT Antenna Specifications:
- Overview: Internet of Things (IoT) Antennas: Wi-Fi, Bluetooth, Zigbee
- Description: 2.4GHz Wi-Fi/Bluetooth Hinged External Antenna, with SMA Male Connector, Black
- Product Family: Antennas
- Series: 214415
- Component Type: External Antenna
- Function: Signal
- Mates With: SMA Female Receptacle
- Protocol: BT, Wi-Fi
- Type: External Antenna
- Length: 108.40mm
- Mounting Style: N/A
- Net Weight: 7.715/g
- Packaging Type: PET Bag
- Polarization: Linear
- Radiation Pattern: Omnidirectional
- Width: 9.35mm
- Band#1 F_End (MHz): 2500
- Band#1 F_Start (MHz): 2400
- Electrical Connectivity: Cable
- Peak Gain (dBi): 5.3 @ 2.4 GHz
- Return Loss - S11 (dB): < -10
- Total Efficiency: >80% @ 2.4 GHz
- UPC: 193264434725
- EU ELV: Not Relevant
- EU RoHS: Compliant with Exemption 6(c)
- REACH SVHC: Contained Per - ECHA_01_2020 (16 January 2020) Lead
- Halogen-Free Status: Low-Halogen
- RoHS Phthalates: Not Contained
Buy the 214415-0001 MOLEX 2.4GHz Wi-Fi/BT Antenna | myMectronic
Purchase the MOLEX 214415-0001 antenna securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2144150001?
You can click on the BUY or RFQ button to purchase 2144150001 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2144150001?
You can download the 2144150001 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2144150001?
MOLEX
