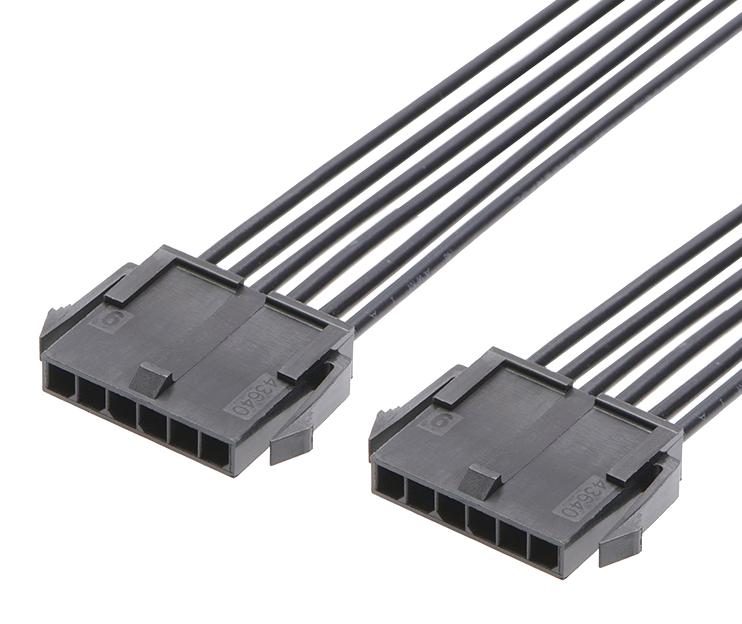

MOLEX 2147521082 Micro-Fit Connector
Micro-Fit 3.0 cable assembly featuring a 3.00mm pitch connector and rated between 6.5A to 8.5A. Designed with a Micro-Fit male-to-male configuration, these single-row, dual-ended connectors are ideal for power and wire-to-wire applications. The assembly comes in a 300mm length, black nylon resin housing, and UL 10002 discrete wire, ensuring durability, compactness, and high performance. Suitable for prototyping and mass production, these assemblies provide reliable, low-profile connections with reduced terminal back-out risk, making them a versatile choice for electrical systems needing high-density connections.
MOLEX 2147521082 Micro-Fit Connector Specifications:
- Connector Pitch: 3.00mm
- Number of Circuits: 8
- Cable Length: 300.00mm
- Housing Material: Nylon
- Color: Black
- Gender: Male-Male
- Material - Mating: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Maximum Current per Contact: 8.5A
- Wire Insulation Diameter: 1.85mm max
- Wire Size AWG: 18
- Wire/Cable Type: Discrete Wire UL 10002
- Net Weight: 14.616g
- Applications: Power, wire-to-wire
- RoHS Compliant: Yes
- Elv and REACH Compliances: Not containing SVHC or Halogens
Buy the Buy Molex Micro-Fit 3.0 Part Number 2147521082 Online
Purchase the Molex Micro-Fit 3.0 cable assembly with 8 circuits, 300mm length, and rated 8.5A today. Perfect for power and wire-to-wire connections, this versatile connector features a 3.00mm pitch, durable nylon housing, and UL 10002 compliant wire. Ideal for both prototyping and mass production, it ensures reliable performance with low terminal back-out risk. Order online now for quick delivery and experience high-quality electrical connections suited for demanding industrial and electronic applications.
Buy Molex 2147521082 now and experience unmatched reliability and performance with high-density power connectors for versatile electrical systems.
Frequently Asked Questions
Where can I buy MOLEX 2147521082?
You can click on the BUY or RFQ button to purchase 2147521082 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147521082?
You can download the 2147521082 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147521082?
MOLEX
