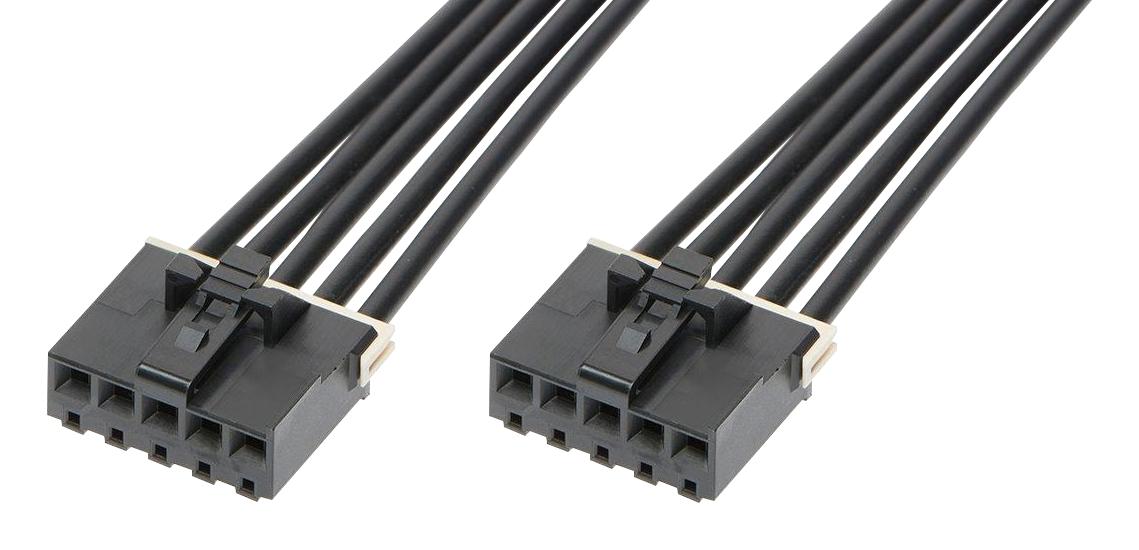

MOLEX 369210510 Cable Assembly
The LINK 396-to-L1NK 396 cable assembly features a 3.96mm pitch, single-row configuration, and a length of 1000mm. Designed for versatile electronic applications, it offers a robust overmolded connector-to-connector interface with five circuits, black color, and female-female gender connection. Made of durable copper alloy with tin plating, it supports a maximum current of 13.0A and voltage of 600V DC. Suitable for industrial and communication equipment, this assembly provides reliable electrical performance, easy crimp or compression termination, and compliance with RoHS standards for environmentally conscious assembly.
MOLEX 369210510 Cable Assembly Specifications:
- Pitch - Mating Interface: 3.96mm
- Cable Length: 1000.00mm
- Circuits (Loaded): 5
- Color - Resin: Black
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 3.12mm
- Wire Size AWG: 18
- Current - Maximum per Contact: 13.0A
- Voltage - Maximum: 600V DC
- Net Weight: 85.367 grams
- Assembly Configuration: Connector to Connector, Overmolded
- Gender: Female-Female
- Packaging Type: Bag
- Number of Rows: 1
- Reference - Drawing Numbers: 193264110810
- RoHS Compliance: Yes
- Halogen-Free: No
- Status: Not Low-Halogen
Buy the Buy Molex LINK 396-to-L1NK 396 Part Number 369210510 Online
Purchase the Molex LINK 396-to-L1NK 396 cable assembly online to guarantee high-quality, reliable connectivity for your industrial, communication, or automation needs. This 3.96mm pitch, 1000mm length, five-circuit configuration offers excellent durability, RoHS compliance, and easy termination options. With robust overmolded construction, tin-plated copper alloy components, and support for up to 13A at 600V, it ensures safe, efficient, and compliant electrical connections for various electronic systems. Shop now for fast delivery and dependable performance.
Order your Molex Series396 369210510 cable assembly today and ensure reliable electrical connections for your industrial and communication projects.
Frequently Asked Questions
Where can I buy MOLEX 369210510?
You can click on the BUY or RFQ button to purchase 369210510 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 369210510?
You can download the 369210510 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 369210510?
MOLEX
