MOLEX 2147602125 Micro-Fit 3.0 Power Cable

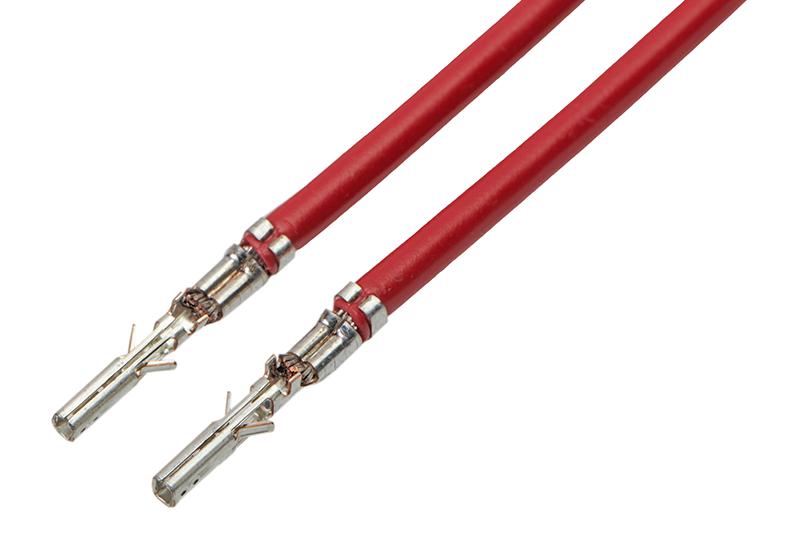

The Micro-Fit 3.0 Female-to-Female Pre-Crimped Lead from Molex is a high-quality, 450mm long, tin-plated, 18 AWG cable designed for power and signal transmission in electronic assemblies. These off-the-shelf pre-crimped leads feature a connector-to-connector configuration with a crimp or compression termination interface, ensuring reliable connections. Suitable for wire-to-wire applications, it supports a maximum current of 8.5A. This durable, halogen-free lead is compliant with RoHS and UL standards, making it ideal for power distribution and electronic device applications requiring robust, quick-connect solutions.
MOLEX 2147602125 Micro-Fit 3.0 Power Cable Specifications:
- Series: Micro-Fit 3.0
- Application: Power, wire-to-wire
- Color - Resin: Red
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Cable Length: 450.00mm
- Wire Insulation Diameter: 1.85mm max.
- Wire Size: 18 AWG
- Current - Maximum per Contact: 8.5A
- Certification: UL 10002
- RoHS: Compliant, Halogen-Free
- Cable Type: Power, wire-to-wire
- Termination Interface: Crimp or Compression
Buy the Molex Series Micro-Fit 3.0 Female-to-Female: 2147602125
Purchase the Molex Micro-Fit 3.0 female-to-female pre-crimped lead online today. With a length of 450mm, 18 AWG gauge, and tin-plated conductors, it offers reliable, safe power and signal transmission. Designed for power distribution in electronic assemblies, it features a connector-to-connector configuration with crimp or compression termination. Compliant with RoHS and UL standards, this halogen-free, durable wire is perfect for applications requiring quick, secure connections in a variety of electronic and power systems.
Order your Molex Series Micro-Fit 3.0 2147602125 today and give your electronic projects the dependable, quick-connect power solutions they need.
Frequently Asked Questions
Where can I buy MOLEX 2147602125?
You can click on the BUY or RFQ button to purchase 2147602125 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147602125?
You can download the 2147602125 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147602125?
MOLEX
