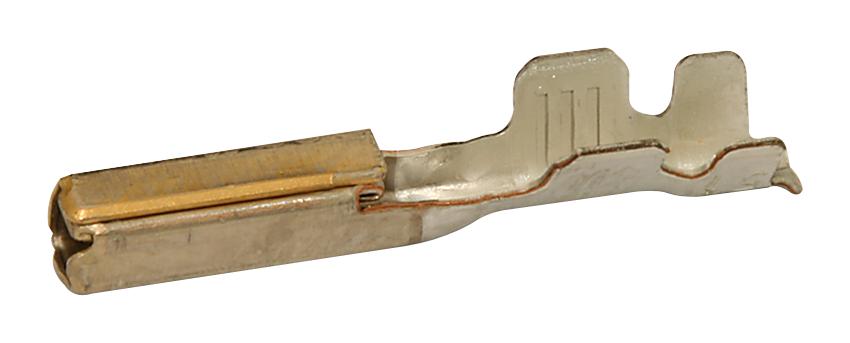

MOLEX 334670024 MX64 Terminal
The MOLEX 33467-0024 is a crucial component in MX64 Sealed Connectors, designed for robust wire-to-board and wire-to-wire connections. With a 2.54mm pitch and gold (Au) plating, this terminal ensures reliable signal transmission and corrosion resistance. It's specifically engineered for use with MX123 and MX64 female receptacle housings, making it a versatile solution for various industrial applications. For automated and semi-automated crimping processes, consider using Left Reel Payoff terminals as indicated in the sales drawing. This terminal is RoHS compliant and contributes to environmentally responsible designs.
MOLEX 334670024 MX64 Terminal Specifications:
- Product Family: Crimp Terminals
- Series: 33467
- Application: Power, Wire-to-Board, Wire-to-Wire
- Comments: For automatic and semiautomatic crimping, use Left Reel Payoff terminals. See Sales Drawing for Left Reel Payoff Part Numbers.
- Gender: Female
- Material - Metal: Copper
- Material - Plating: Gold
- Mating Net Weight: 0.222/g
- Packaging Type: Reel
- Plating min - Mating: 0.762µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.50-2.06mm
- Wire Size AWG: N/A
- Wire Size mm²: 0.50-0.75
- EU ELV Compliant: Yes
- EU RoHS China RoHS: Compliant
- REACH SVHC: Not Contained Per -ED/88/2018 (15 January 2019)
- Halogen-Free Status: Not Relevant
- China ROHS: Not Relevant
- Phthalates: Not Contained
- Use With: MX64 Sealed Single Row Crimp Housing 31403, MX123 Female Receptacle Housing 34566, 34576
