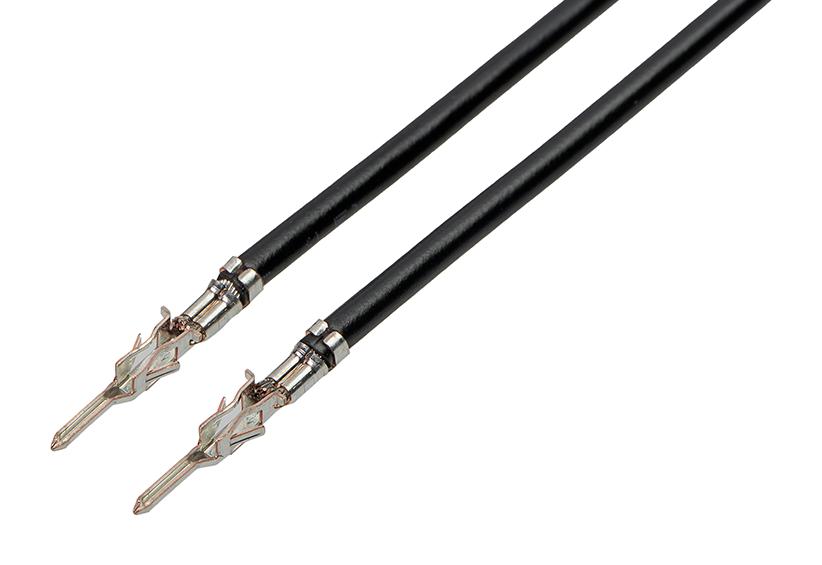

MOLEX 2147621123 Micro-Fit 3.0 Male-to-Male
The MOLEX 214762-1123 is a pre-crimped lead cable assembly designed for reliable power and wire-to-wire connections. This assembly utilizes Micro-Fit 3.0 male connectors on both ends, ensuring a secure and robust connection. The tin plating on the connectors provides excellent conductivity and corrosion resistance. With a length of 225mm and an 18 AWG wire gauge, this cable assembly is ideal for a variety of industrial applications requiring a pre-terminated solution. It is RoHS compliant and REACH SVHC-free, meeting environmental standards.
MOLEX 2147621123 Micro-Fit 3.0 Male-to-Male Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- description: Pre-Crimped Lead Micro-Fit 3.0 Male-to-Micro-Fit 3.0 Male, Tin (Sn) Plated, 225.00mm Length, 18 AWG, Black
- series: 214762
- application: Power, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- cable_length: 225.00mm
- wire_size: 18 AWG
- color: Black
- gender: Male-Male
- material_metal: Phosphor Bronze
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- plating_min_mating: 1.016µm
- plating_min_termination: 1.016µm
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.85mm max.
- circuits_loaded: 1
- current_max_per_contact: 8.5A
- upc: 193264574742
- net_weight: 2.655/g
- single_ended: No
- wire_type: UL 10002
- compatible_housings: 43020, 43640, 44300, 46625
- rohs_status: Compliant
- reach_svhc: Not Contained
