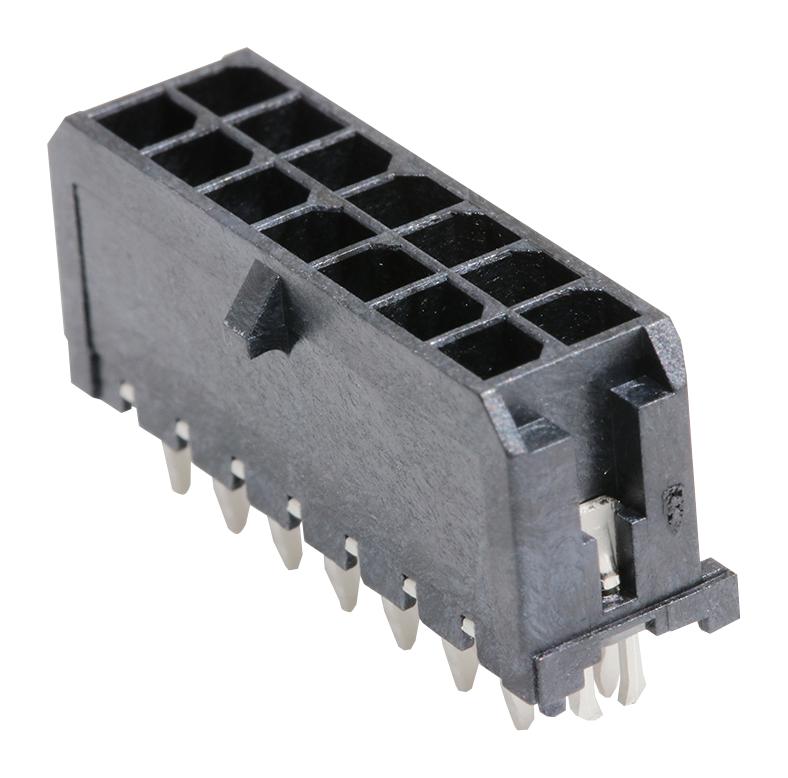

MOLEX 430451424 Micro-Fit Power Connector
The Micro-Fit 3.0 vertical header with a 3.00mm pitch offers a dual-row, 14-circuit configuration with PCB press-fit, glow-wire capability, and high-temperature thermoplastic construction. It features a fully mated height of 8.5A current capacity, maximum voltage of 600V, and a durable design rated for up to 260 mating cycles. Suitable for power and wire-to-board applications, it ensures safety with glow wire ignition temperature of at least 775°C and flammability index above 850°C, meeting IEC standards. Ideal for electronic and electrical wiring requiring reliable, high-performance connectors.
MOLEX 430451424 Micro-Fit Power Connector Specifications:
- Type: Micro-Fit 3.0 vertical header
- Pitch: 3.00mm
- Number of Circuits: 14
- Color - Resin: Black
- Material - Resin: High-temperature thermoplastic
- Material - Metal: Copper alloy
- Plating - Mating: Tin
- Plating - Termination: Tin
- Height - Mated: 8.5A current capacity, maximum voltage 600V
- Temperature Range: -40°C to +105°C
- Durability: Up to 260 mating cycles
- Mounting: Through Hole, Kinked Pin
- Glow-Wire Capable: Yes
- Flammability: Glow Wire Ignition Temperature ≥775°C, Flammability Index >850°C
- Compliance: UL, CSA, RoHS
- Orientation: Vertical
- Loss Weight: 2.048g
- Packaging: Tray
Buy the Buy Molex Micro-Fit 3.0 Part Number 430451424 Online
Purchase the Molex Micro-Fit 3.0 power connector online today to benefit from its high-current capacity, durability, and safety features. Designed for power and wire-to-board applications, this connector with a 3.00mm pitch and 14 circuits ensures secure, reliable connections in demanding environments. Its glow-wire capabilities and high-temperature thermoplastic make it suitable for safety standards and various electrical projects. Easy to install with press-fit contacts and up to 260 mate cycles, it is the perfect choice for industrial, automation, and electronic systems requiring dependable power distribution.
Order your Molex Series43045 430451424 today and ensure reliable power connections with this high-temperature, glow-wire capable connector.
Frequently Asked Questions
Where can I buy MOLEX 430451424?
You can click on the BUY or RFQ button to purchase 430451424 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430451424?
You can download the 430451424 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430451424?
MOLEX
