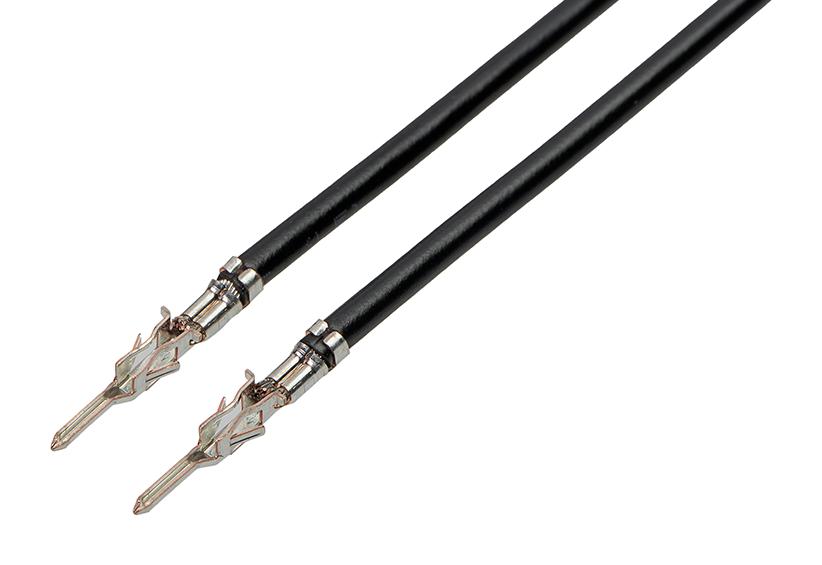

MOLEX 2147621221 Micro-Fit 3.0 Male-to-Male
The MOLEX 214762-1221 is a pre-crimped lead cable assembly designed for reliable power and wire-to-wire connections. It utilizes Micro-Fit 3.0 male connectors on both ends, ensuring compatibility with a range of Micro-Fit 3.0 plug housings. The gold plating on the mating contacts and tin plating on the termination contacts provide excellent conductivity and corrosion resistance. This assembly is RoHS compliant and suitable for various industrial applications requiring secure and efficient electrical connections.
MOLEX 2147621221 Micro-Fit 3.0 Male-to-Male Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- series: 214762
- application: Power, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Micro-Fit 3.0
- cable_length: 75.00mm
- wire_size: 18 AWG
- color: Black (Resin)
- gender: Male-Male
- material_metal: Phosphor Bronze
- material_plating_mating: Gold (Au)
- material_plating_termination: Tin
- plating_min_mating: 0.762µm
- plating_min_termination: 2.540µm
- single_ended: No
- circuits_loaded: 1
- current_max_per_contact: 8.5A
- wire_insulation_diameter: 1.85mm max.
- termination_interface_style: Crimp or Compression
- upc: 193264574773
- reach_svhc: Not Contained Per - D(2020)4578-DC (25 June 2020)
- halogen_free: Yes
- net_weight: 1.038/g
- rohs_phthalates: Not Contained
- material_info_reference_drawing_numbers: 2147621221-000
