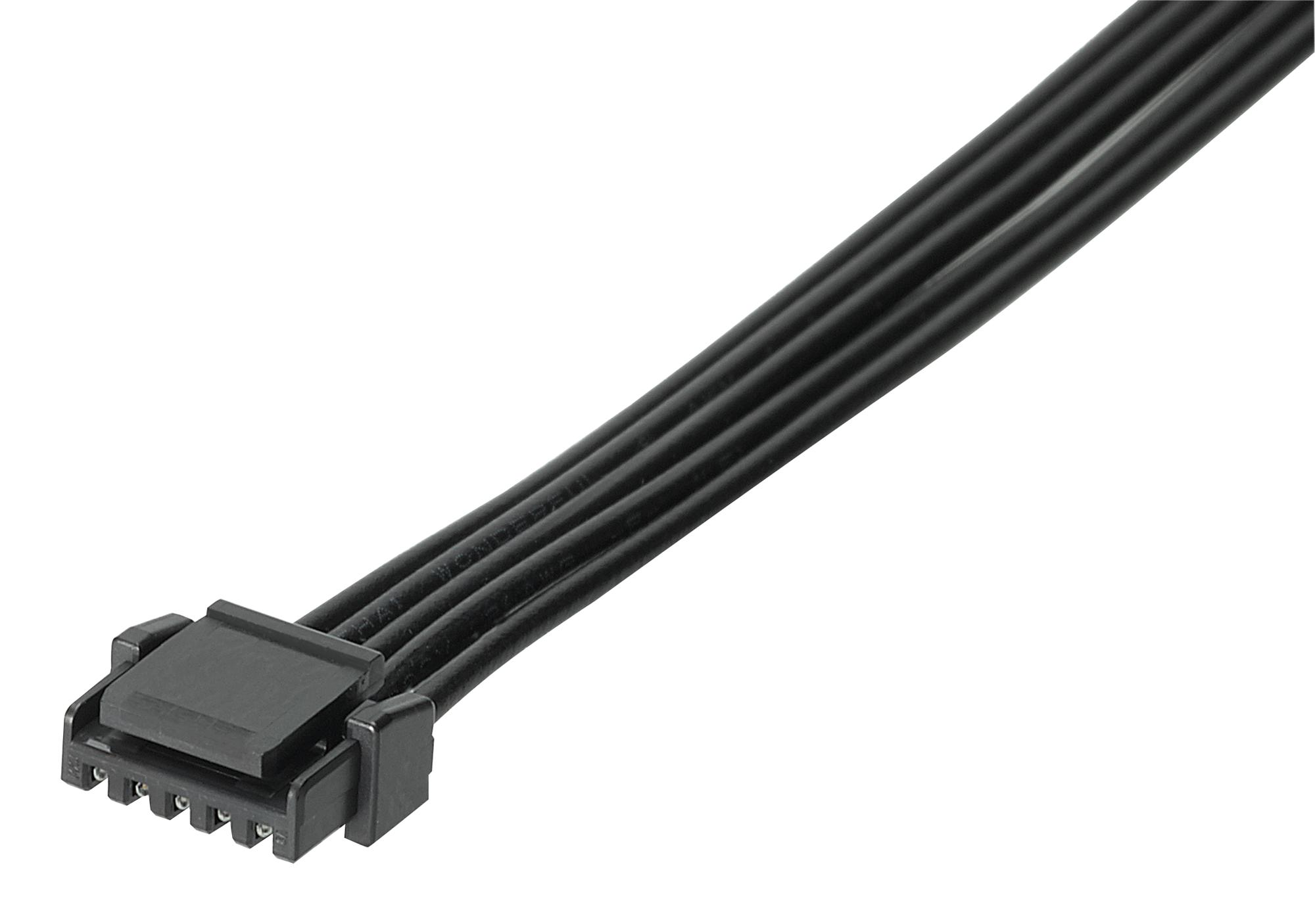

MOLEX 451110501 Micro-Lock Plus Cable Assembly
The Micro-Lock PLUS-to-Micro-Lock PLUS Off-the-Shelf Cable Assembly features a 1.25mm pitch, single row configuration, and measures 100mm in length with 5 circuits. Made from high-quality copper alloy with tin plating, it offers reliable electrical connections rated for a maximum of 50V AC/DC. Designed for wire insulation diameters up to 0.98mm and wire sizes of 26 AWG, this assembly is suitable for wire-to-board applications, providing durable, secure connections in compact electronic systems. RoHS and REACH compliant, it ensures environmentally friendly operation.
MOLEX 451110501 Micro-Lock Plus Cable Assembly Specifications:
- Pitch: 1.25mm
- Cable Length: 100.00mm
- Circuits: 5
- Color: Black
- Gender: Female-Female
- Material: Copper Alloy
- Plating: Tin
- Resin Material: Polyester
- Wire Insulation Diameter: 0.98mm
- Wire Size: 26 AWG
- Voltage Rating: 50V AC/DC
- Termination Style: Crimp or Compression
- Net Weight: 1.770 grams
- RoHS & REACH Compliant
- Maximum Current: Suitable for low-power electronic applications
Buy the Molex Series Micro-Lock Plus Cable: 0451110501
Purchase the Molex Micro-Lock Plus Cable Assembly online today for your electronic projects. Designed with a 1.25mm pitch and 5 circuits, it offers durable, secure wire-to-board connectivity. The assembly measures 100mm in length and features tin-plated copper alloy for excellent electrical performance. RoHS and REACH compliant, it ensures eco-friendly operation and reliability. Perfect for industrial, automation, or consumer electronics, this compact, easy-to-use connector guarantees long-lasting durability and precise assembly for your application needs.
Get Molex 0451110501 today—built for precise, reliable wire-to-board connections in compact electronic devices.
Frequently Asked Questions
Where can I buy MOLEX 451110501?
You can click on the BUY or RFQ button to purchase 451110501 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 451110501?
You can download the 451110501 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 451110501?
MOLEX
