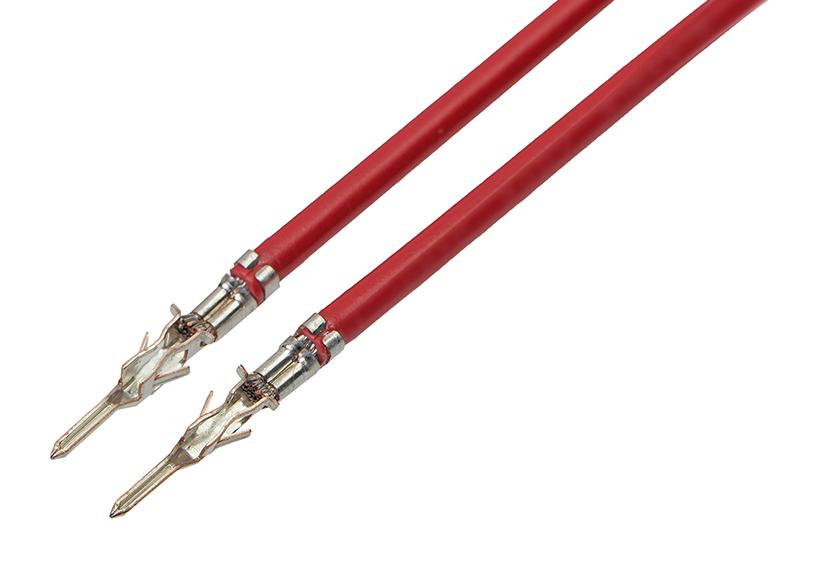

MOLEX 2147622125 Micro-Fit 3.0 Cable Assembly
The MOLEX 214762-2125 is a pre-crimped lead cable assembly designed for wire-to-wire power applications. This Micro-Fit 3.0 assembly features a male-to-male connector configuration, tin plating on both mating and termination surfaces, and a red resin color. It is RoHS compliant and suitable for use with Micro-Fit 3.0 plug housings. The assembly provides a convenient and secure connection solution for various industrial and commercial applications.
MOLEX 2147622125 Micro-Fit 3.0 Cable Assembly Specifications:
- Series: 214762
- Application: Power, Wire-to-Wire
- Assembly Configuration: Pre-crimped Lead Only
- Connector to Connector: Micro-Fit 3.0 Crimp Terminals
- Cable Length: 450.00mm
- Wire Size: 18 AWG
- Current - Maximum per Contact: 8.5A
- Color: Red
- Gender: Male-Male
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin (Sn)
- Material - Plating Termination: Tin (Sn)
- Plating min - Mating: 1.016µm
- Plating min - Termination: 1.016µm
- Termination Interface: Style: Crimp or Compression
- Wire Insulation Diameter: 1.85mm max.
- Wire/Cable Type: UL 10002
- Net Weight: 5.081/g
- Circuits (Loaded): 1
