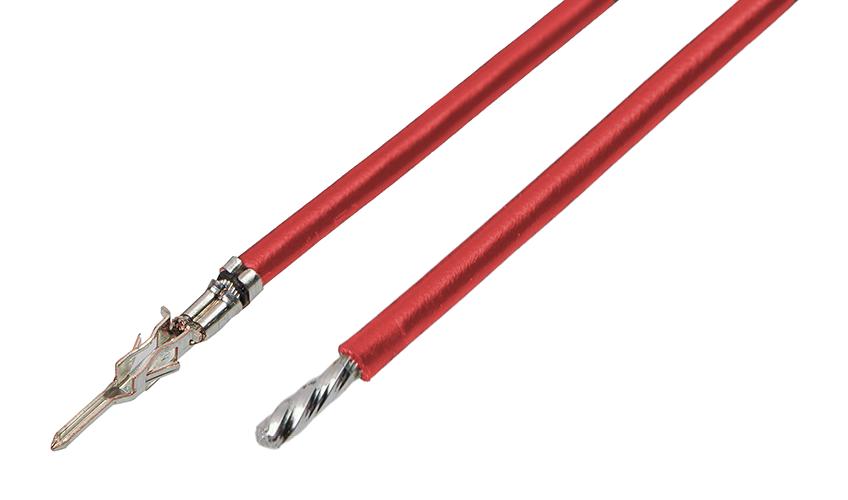

MOLEX 2147632211 Micro-Fit Pigtail Connector
This pre-crimped lead is a Micro-Fit 3.0 male-to-pigtail connector with a 75.00mm cable length, designed for power and wire-to-wire applications. Constructed with phosphor bronze contacts that are gold-plated for optimal conductivity and corrosion resistance, it supports wire sizes up to 20 AWG with a maximum crimp or compression interface. Suitable for assembling with Micro-Fit 3.0 plug and BMI housings, it delivers a maximum current of 8.5A per contact. The lead complies with RoHS and is halogen-free, ensuring safety and environmental standards are met.
MOLEX 2147632211 Micro-Fit Pigtail Connector Specifications:
- Cable Length: 75.00mm
- Number of Circuits: 1
- Color: Red
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Size AWG: 20
- Wire Insulation Diameter: 1.85mm max
- Electrical Current - Maximum per Contact: 8.5A
- Application: Power, Wire-to-Wire
- Connector Series: Micro-Fit 3.0
- Certification: UL 10002
- RoHS Compliance: Yes
- Halogen-Free: Not Halogen-Free
- RoHS Phthalates: Not Contained
- Part Number: 2147632211
Buy the Buy Molex Micro-Fit 3.0 Part Number 2147632211 Online
Order the Molex Micro-Fit 3.0 male-to-pigtail connector with 75mm cable length online today. Featuring gold-plated contacts, supports 20 AWG wires, and delivers up to 8.5A per contact for power applications. Designed for easy assembly with Micro-Fit 3.0 plug housings, this RoHS-compliant, halogen-free connection ensures safety and longevity. Perfect for power supply, automation, and power distribution needs, it provides a secure and corrosion-resistant connection suitable for various industrial uses.
Buy Molex Micro-Fit 3.0 2147632211 now and experience reliable power connections with high-quality gold-plated contacts and durable design.
Frequently Asked Questions
Where can I buy MOLEX 2147632211?
You can click on the BUY or RFQ button to purchase 2147632211 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147632211?
You can download the 2147632211 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147632211?
MOLEX
