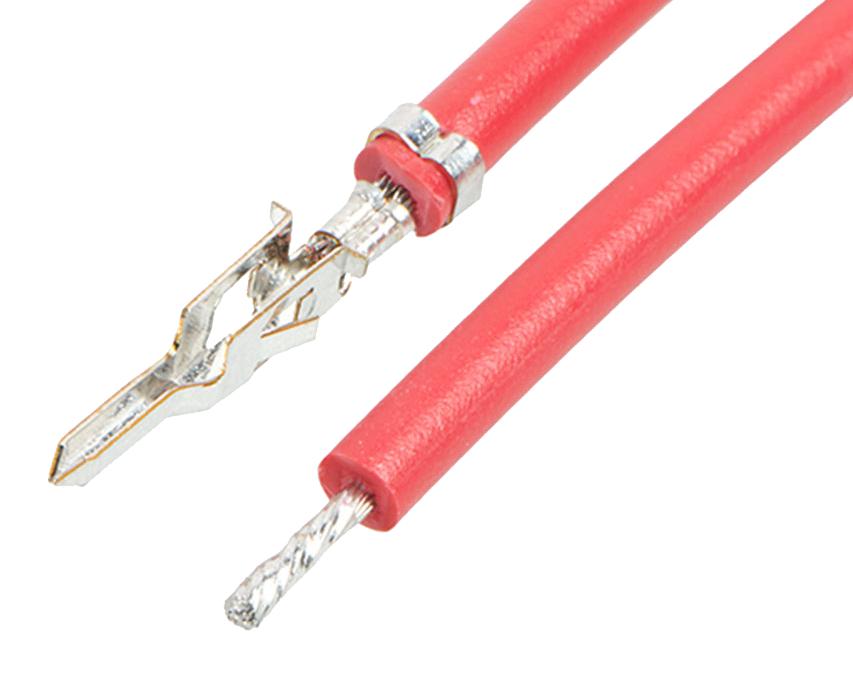

MOLEX 2153432114 Mini-Fit Jr. Pigtail
The MOLEX 215343-2114 is a pre-crimped lead assembly designed for power and wire-to-wire applications. It combines a Mini-Fit Jr. male connector with a pigtail, offering a ready-to-use solution for connecting wires. The tin plating ensures excellent conductivity and corrosion resistance, while the 18 AWG wire gauge and 300mm length provide flexibility and reach. This assembly is ideal for various industrial and commercial applications where a pre-terminated connection is required.
MOLEX 2153432114 Mini-Fit Jr. Pigtail Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 215343
- application: Power, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_type: Mini-Fit Jr.-to-Pigtail
- cable_length: 300.00mm
- circuits_loaded: 1
- color: Red (Resin)
- material_metal: Brass
- plating_mating: Tin
- plating_termination: Tin
- net_weight: 5.058/g
- packaging_type: Bag Single Ended
- gender: Male-Pigtail
- termination_interface: Crimp or Compression
- wire_insulation_diameter: 1.80-3.10mm
- wire_size_awg: 18
- wire_cable_type: UL 1015
- current_max_per_contact: 9.0A
- voltage_max: 600V
- upc: 193264560578
- sales_drawing: 2153431111-000
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
