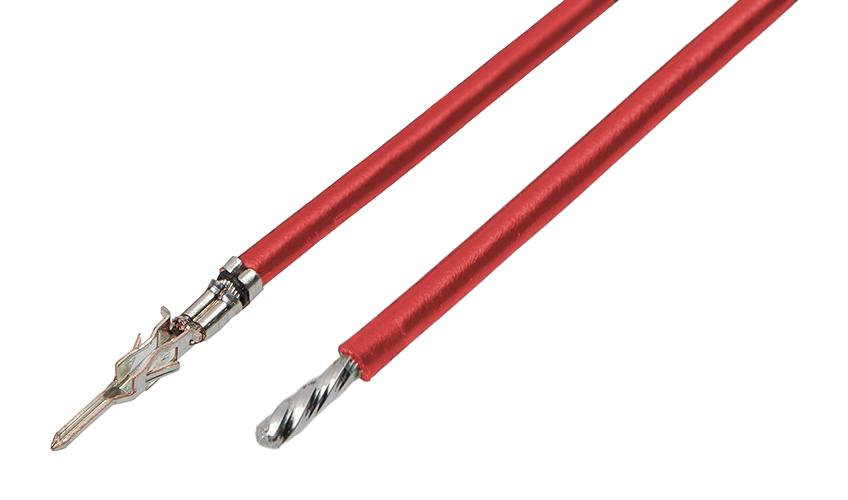

MOLEX 2147632213 Micro-Fit Power Lead
This off-the-shelf pre-crimped lead features Micro-Fit 3.0 male-to-pigtail connectors with gold-plated contacts for reliable electrical connections. Measuring 225 mm in length, it is ideal for power and wire-to-wire applications, providing a maximum current of 8.5A per contact. Constructed with phosphor bronze material and tin plating, it ensures durability and corrosion resistance. The lead is designed for crimp or compression termination with a wire size of 20 AWG and a maximum insulation diameter of 1.85 mm. Compatible with Micro-Fit 3.0 plug and BMI housings, it suits industrial and electronics assembly needs.
MOLEX 2147632213 Micro-Fit Power Lead Specifications:
- Series: Micro-Fit 3.0
- Cable Length: 225.00mm
- Color: Red
- Gender: Male-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating & Termination: Gold and Tin
- Wire Size AWG: 20
- Wire Insulation Diameter: 1.85mm max.
- Current - Maximum per Contact: 8.5A
- Termination Interface: Crimp or Compression
- Applicable Housings: Micro-Fit 3.0 Plug and BMI Housings
- RoHS & REACH Compliant, Halogen-Free, Not Low-Halogen
- Certification: UL 10002
Buy the Buy Molex Micro-Fit 3.0 Part Number 2147632213 Online
Purchase the Molex Micro-Fit Power Lead online today. This 225mm pre-crimped male-to-pigtail connector features gold plating for enhanced corrosion resistance, supports up to 8.5A current per contact, and is ideal for power wiring and electronic applications. Made with durable phosphor bronze, it ensures long-lasting performance. Compatible with Micro-Fit 3.0 plug housings and BMI housings, this lead provides reliable connections in industrial and electronics assembly. Easy to install with crimp or compression termination methods.
Get Molex 2147632213 today—built for high-current power connections and durability in electronic assembly.
Frequently Asked Questions
Where can I buy MOLEX 2147632213?
You can click on the BUY or RFQ button to purchase 2147632213 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147632213?
You can download the 2147632213 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147632213?
MOLEX
