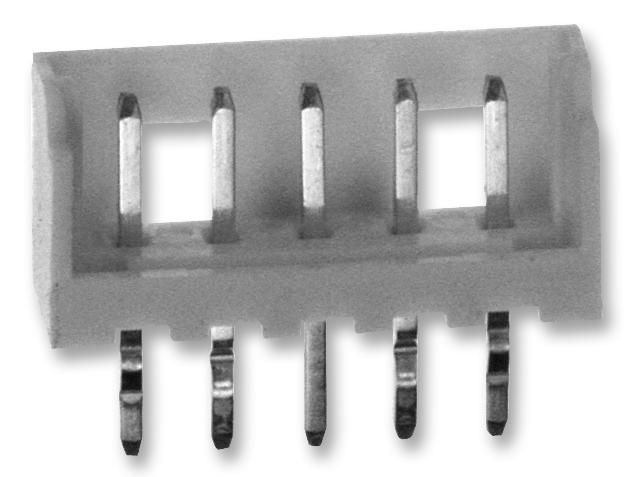

MOLEX 532530570 Micro-Latch Wire-to-Board Header
The 2.00mm Pitch Micro-Latch Wire-to-Board Header is a vertical connector designed for applications requiring reliable circuit connections. It features square pins, a three-sided shroud, and supports up to 5 circuits, making it suitable for compact, high-density electronic assemblies. Constructed with brass metal, tin-plated for corrosion resistance, and made with durable nylon resin, this header offers excellent performance in operating temperatures from -40°C to +105°C. Its orientation is vertical with a PCB tail length of 3.50mm, ensuring secure integration into various electronic systems.
MOLEX 532530570 Micro-Latch Wire-to-Board Header Specifications:
- Pitch: 2.00mm
- Number of Circuits: 5
- Maximum Circuits: 30
- Material - Metal: Brass
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 179.4 mg
- First Mate / Last Break: No
- Durability: 30 mating cycles
- Operating Temperature Range: -40°C to +105°C
- PCB Tail Length: 3.50mm
- PCB Thickness - Recommended: 1.60mm
- Voltage - Max: 125V
- Current - Max per Contact: 2.0A
- Termination Interface: Through Hole
- Surface Mount Compatible: No
- Shrouded: Yes
- Stackable: No
- RoHS & REACH Compliant: Yes
- Halogen-Free: No
- UL ELV: Not Relevant
- Environmental Compliance: RoHS, China RoHS, Prop65
Buy the Molex Series Micro-Latch 2.00mm Pitch Wire-to-Board Header: 532530570
Discover the reliable and high-performance Micro-Latch Wire-to-Board Header with a 2.00mm pitch, vertical orientation, and high durability. Designed for compact electronic assemblies, it supports up to 5 circuits and features a three-sided shroud for secure connections. Made from brass with tin plating and nylon resin, this connector operates efficiently within -40°C to +105°C. Its through-hole termination and stackable design ensure easy installation and integration into a wide range of electronic systems, making it an ideal choice for various industrial applications.
Buy Molex 532530570 now and experience unmatched reliability and performance with this high-density, corrosion-resistant wire-to-board connector.
Frequently Asked Questions
Where can I buy MOLEX 532530570?
You can click on the BUY or RFQ button to purchase 532530570 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 532530570?
You can download the 532530570 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 532530570?
MOLEX
