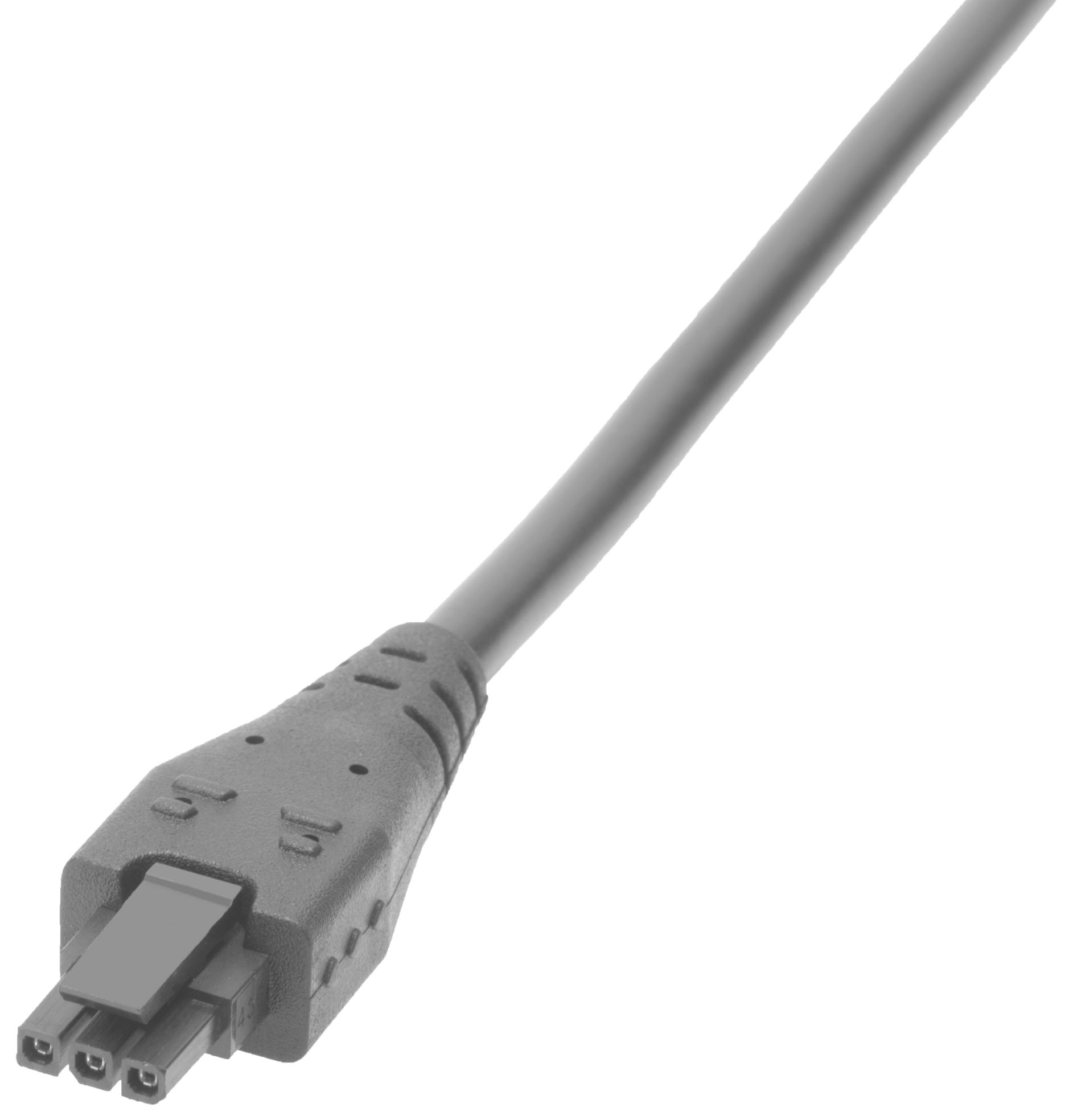

MOLEX 2147700305 Micro-Fit Cable Assembly
The Micro-Fit 3.0 female-to-female cable assembly from the 214770 series is designed for reliable connections in rugged environments. Featuring a single-row, overmolded design with locking tangs, it guarantees secure mating and prevents misalignment due to polarized geometry. With a 500mm length, it supports up to 8.5A and operates at a maximum of 300V AC/DC. Its durable nylon housing, tin-plated phosphor bronze terminals, and crimp or compression termination ensure excellent performance across a temperature range of -20°C to +80°C, meeting UL 94V-0 flammability standards.
MOLEX 2147700305 Micro-Fit Cable Assembly Specifications:
- Series: 214770
- Type: Micro-Fit 3.0 Female-to-Female Cable Assembly
- Cable Length: 500.00mm
- Circuits: 3
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 1.85mm max.
- Wire Size AWG: 20
- Electrical Current: 8.5A per contact
- Voltage Rating: 300V AC/DC
- Temperature Range: -20°C to +80°C
- Flammability Standard: UL 94V-0
- Termination Style: Crimp or Compression
- Locking: Tangs on terminals for secure connection
- Mating Geometry: Polarized to prevent mis-mating
Buy the Buy Molex Micro-Fit 3.0 Female-to-Female Cable Assembly Part Number 2147700305 Online
Purchase the Molex Micro-Fit 3.0 Female-to-Female Cable Assembly online today and enjoy dependable, high-quality connectivity solutions for data and power applications. This 500mm cable features a robust overmolded design with locking tangs for secure connection, rated for 8.5A and 300V. Its durable nylon housing, tin-plated phosphor bronze terminals, and flexible termination options provide excellent performance in harsh conditions from -20°C to +80°C. Trusted by professionals, this assembly ensures safety, reliability, and ease of installation for a variety of demanding electronic systems.
Order your Molex Series214770 Micro-Fit 3.0 Female-to-Female Cable Assembly today and ensure reliable, secure connections for your rugged electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2147700305?
You can click on the BUY or RFQ button to purchase 2147700305 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2147700305?
You can download the 2147700305 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2147700305?
MOLEX
