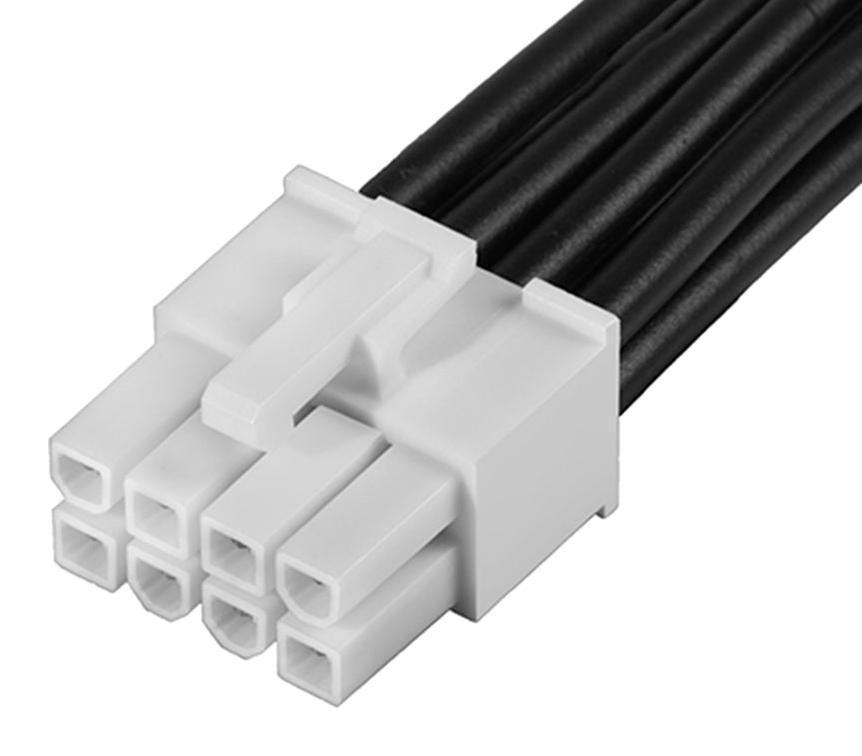

MOLEX 2153282082 Power Cable Assembly
This Mini-Fit Jr. male-to-pigtail cable assembly features an 8-circuit, dual-row configuration with a 300mm length, gold plating, and black resin. Designed for power connections, it offers reliable crimp or compression termination, UL 1015 wiring, and can handle up to 9A current and 600V voltage. The assembly is ideal for power wire-to-wire applications, providing durable connections with a wire size range of 16 AWG. It is compliant with RoHS and China RoHS standards, halogen-free, and suitable for various power distribution needs in industrial electronic systems.
MOLEX 2153282082 Power Cable Assembly Specifications:
- Cable Length: 300.00mm
- Circuits (Loaded): 8
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Wire Insulation Diameter: 2.20-3.10mm
- Wire Size AWG: 16
- Wire/Cable Type: UL 1015
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Application: Power wire-to-wire connections
- Termination Interface: Crimp or Compression
- Number of Rows: 2
- Pitch - Mating Interface: 4.20mm
- RoHS: Compliant
- Halogen-Free: No
- Status: Active
Buy the Buy Molex Mini-Fit Jr. Power Cable Part Number 2153282082 Online
Purchase the Molex Mini-Fit Jr. power cable assembly online for durable, high-quality power connections. This 8-circuit, 300mm long male-to-pigtail assembly features gold plating, UL 1015 wiring, and a robust crimp or compression termination. Its black resin housing is designed for reliable connection in power distribution applications, handling up to 9A and 600V. RoHS compliant and halogen-free, this assembly is ideal for industrial electronic systems requiring secure and efficient wire-to-wire power connections. Buy online now for quick delivery.
Order your Molex Series215328 Power Male-to-Pigtail Assembly today and ensure reliable, high-current power connections for your electronic projects.
Frequently Asked Questions
Where can I buy MOLEX 2153282082?
You can click on the BUY or RFQ button to purchase 2153282082 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153282082?
You can download the 2153282082 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153282082?
MOLEX
