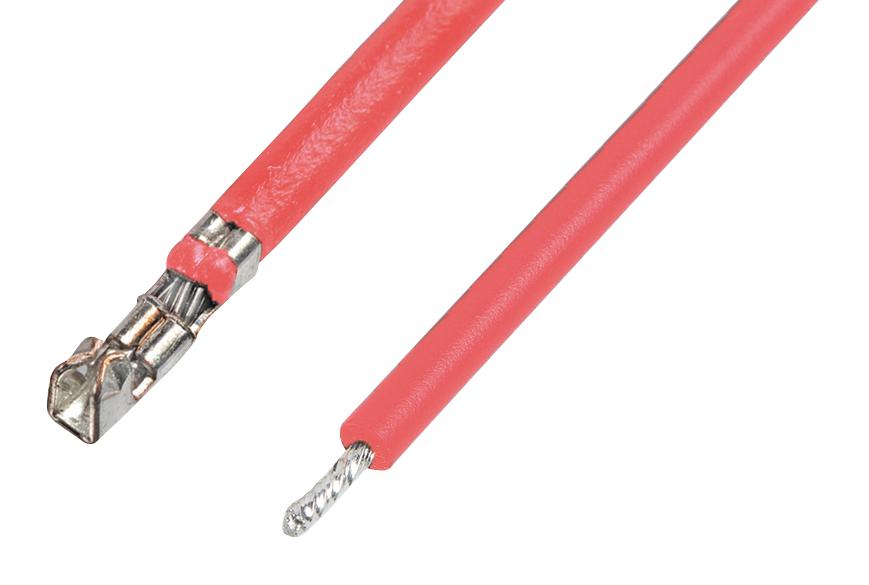

MOLEX 2149212214 PicoBlade Female-to-Pigtail
The PicoBlade Female-to-Pigtail is a pre-crimped lead designed for reliable electrical connections in various electronic applications. Featuring gold plating for excellent conductivity and corrosion resistance, it offers a 300mm cable length with 26 AWG wire size, suitable for high-quality signal and power connections. Made from phosphor bronze with tin plating, the connector ensures durability and low contact resistance. Compatible with PicoBlade crimp housings, this assembly is RoHS compliant and ideal for custom wiring harnesses in industrial and consumer electronics. Its compact design allows easy integration into tight spaces, providing dependable performance in demanding environments.
MOLEX 2149212214 PicoBlade Female-to-Pigtail Specifications:
- Cable Length: 300.00mm
- Wire Size: 26 AWG
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Color: Black
- Gender: Female-Pigtail
- Pitch - Mating Interface: 1.25mm
- Maximum Temperature: Not specified
- Maximum Voltage: 125V AC/DC
- Maximum Current: 1.0A
- Wire Insulation Diameter: Up to 1.04mm
- Reference Drawing Number: 2149212221-000
- RoHS Compliance: Yes
- Halogen-Free: No
- Certifications: UL 1061
Buy the Buy Molex PicoBlade Female-to-Pigtail Part Number 2149212214 Online
Purchase the Molex PicoBlade Female-to-Pigtail online for high-quality, dependable electrical connections. Features gold plating for corrosion resistance, 300mm cable length, 26 AWG wire, and robust phosphor bronze construction. RoHS compliant and suitable for industrial or consumer electronics, its compact size ensures easy integration in tight spaces. Perfect for wiring harnesses and signal applications, this pre-crimped lead offers durability and optimal performance. Buy now to experience quality and reliability in your electronic projects and enhance your device assembly process with ease.
Get Molex PicoBlade Female-to-Pigtail 2149212214 today—built for reliable electrical connections with gold plated contacts and a compact design.
Frequently Asked Questions
Where can I buy MOLEX 2149212214?
You can click on the BUY or RFQ button to purchase 2149212214 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2149212214?
You can download the 2149212214 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2149212214?
MOLEX
