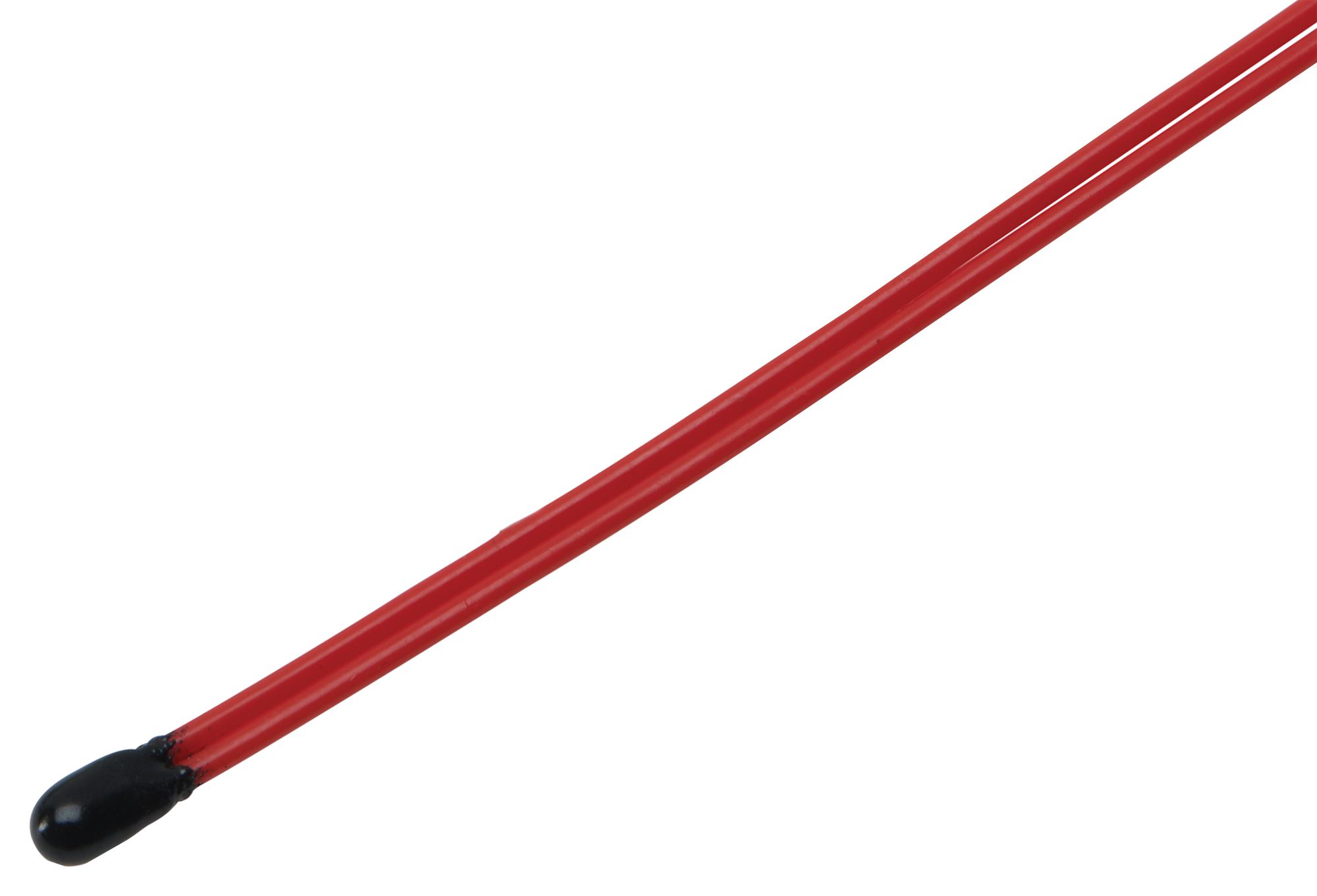

MOLEX 2152723703 NTC Temperature Sensor Cable
The MOLEX 215272-3703 is a temperature sensor cable assembly designed for temperature sensing applications. This cable features an NTC thermistor with an epoxy coating for protection. It offers a 25.00mm length, a 3982 beta value, and a resistance of 12kΩ at 25°C with a 1% tolerance. The cable is single-ended and includes a red resin color, making it suitable for various industrial and commercial applications where precise temperature monitoring is required.
MOLEX 2152723703 NTC Temperature Sensor Cable Specifications:
- overview: Temperature Sensor Cable Assemblies
- description: Epoxy Coated NTC Thermistor Cables
- length: 25.00mm
- beta_value: 3982
- resistance_at_25c: 12kΩ
- resistance_tolerance: 1%
- color_resin: Red
- cable_length: 25.00mm
- circuits_loaded: 1
- gender: N/A
- lock_to_mating_part: Yes
- net_weight: 0.110/g
- packaging_type: Bag Single Ended
- wire_size_awg: 28
- upc: 193264876402
- series: 215272
- elv_compliance: Not Relevant
- rohs_compliance: Compliant with Exemption 15(a)
- reach_svhc_compliance: lead
- halogen_free_status: Not Reviewed
