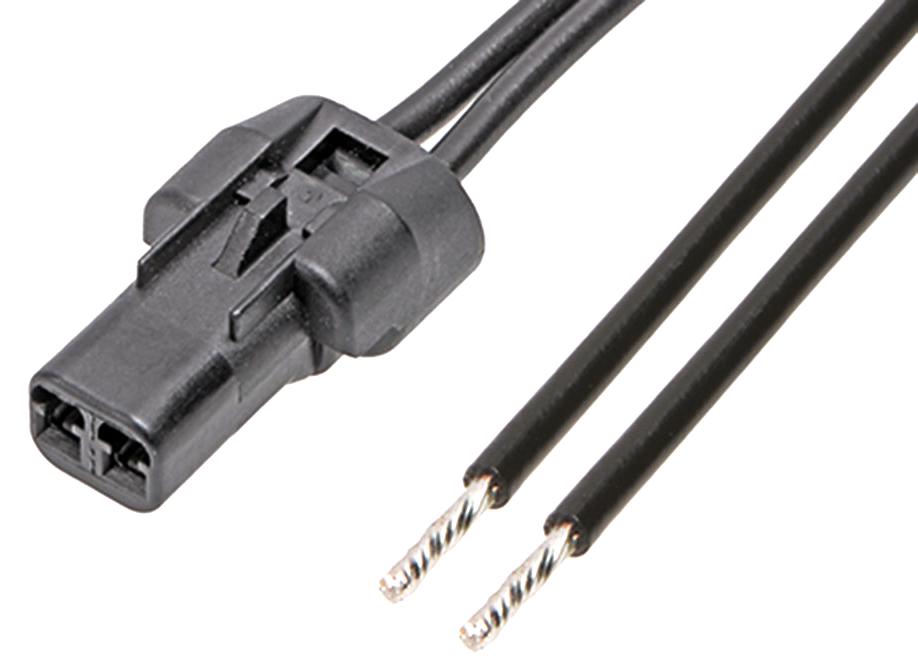

MOLEX 2153111022 Waterproof Cable Assembly
The 215311 series Mizu-P25 female-to-pigtail cable assembly features a 2.50mm pitch, supporting up to 4A current with an IP67 dust and water-resistant rating. It includes a positive lock for secure connections and a raised body male terminal design to prevent incorrect mating. Made with polyester housing and phosphor bronze contacts with tin plating, it uses terminals from series 50147 and 50148. Suitable for automotive, consumer, and industrial automation, it supports a maximum of 60V and is designed for reliable, space-efficient connectivity in harsh environments.
MOLEX 2153111022 Waterproof Cable Assembly Specifications:
- Pitch: 2.50mm
- Cable Length: 300.00mm
- Circuits: 2
- Color: Black
- Gender: Female-Pigtail
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Resin: Polyester
- Net Weight: 8.900 grams
- Number of Rows: 1
- Termination Interface: Crimp or Compression
- Wire Insulation Diameter: 1.40-1.90mm
- Wire Size AWG: 20, 22
- Wire/Cable Type: Discrete Wire
- Maximum Current: 4.0A
- Maximum Voltage: 60V
- Waterproof Rating: IP67
- RoHS Compliant: Yes
Buy the Buy Molex female-to-pigtail part number 2153111022 Online
Order the Molex waterproof cable assembly designed with a 2.50mm pitch, supporting up to 4A current. With an IP67 rated dust and water resistance, it features a positive lock for secure connection, a raised terminal design for polarization, and corrosion-resistant tin-plated contacts. Made from durable polyester housing, it’s ideal for harsh environments in automotive, industrial automation, and consumer electronics. This compact, space-saving connector offers reliable performance and easy installation, ensuring long-lasting, safe electrical connections for a wide range of applications.
Get Molex 2153111022 today—precision-engineered waterproof connector for industrial, automotive, and consumer applications.
Frequently Asked Questions
Where can I buy MOLEX 2153111022?
You can click on the BUY or RFQ button to purchase 2153111022 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153111022?
You can download the 2153111022 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153111022?
MOLEX
