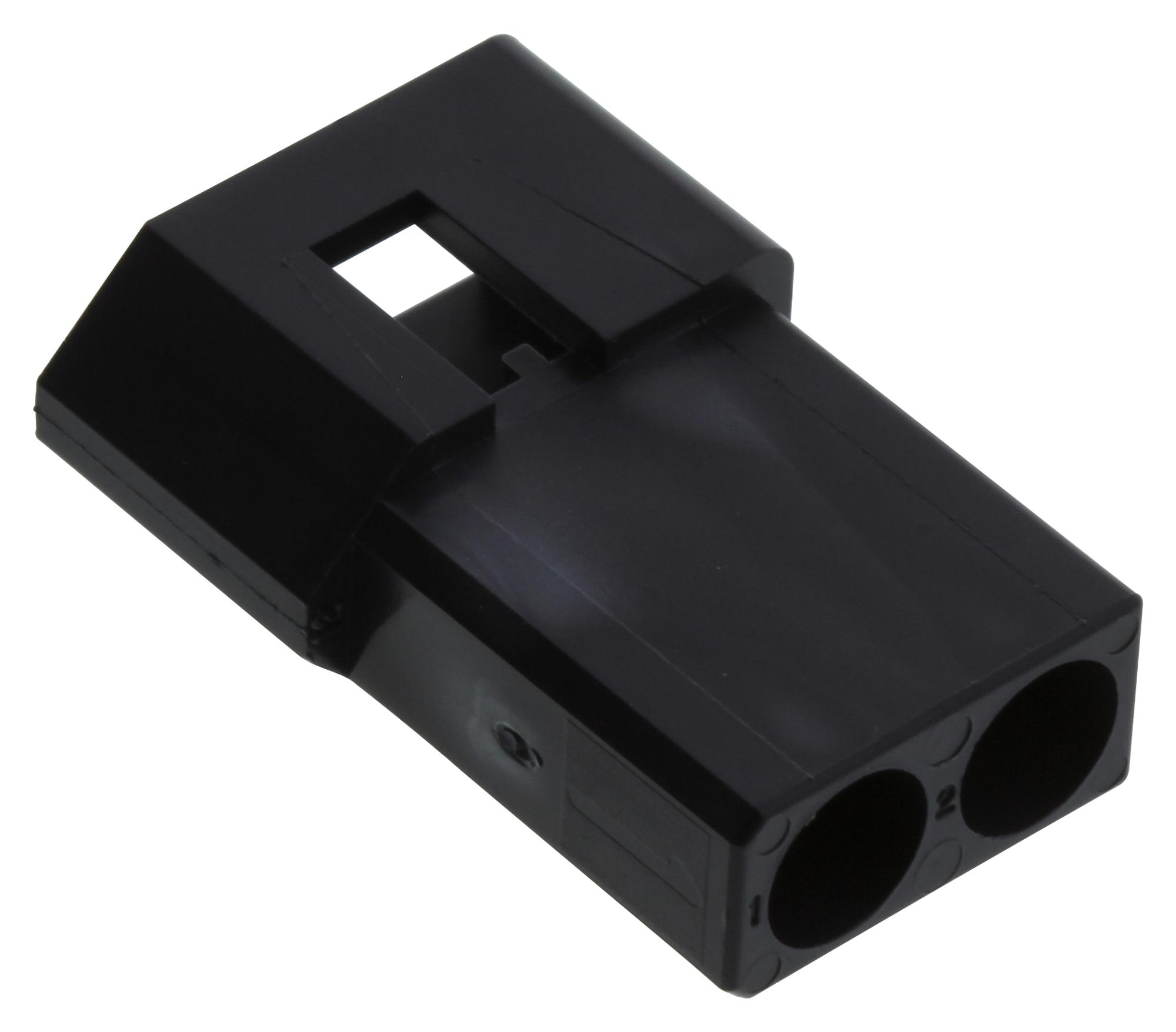

MOLEX 50361686 Standard Pin and Socket Housing
The MOLEX 50-36-1686 is a 2-circuit plug housing within the 1545 series, designed for robust wire-to-wire power applications. This polarized housing, constructed from nylon PA66 with a UL94V-2 flammability rating, is glow-wire capable and features a black resin color. It is compatible with various crimp terminals, including 1189, 1190, 1380, 1381, 1433, 1434, 1973, 2151, 2273, 2870, 2871, 4272, and others. The housing is not panel mount and offers a secure lock to the mating part, making it suitable for demanding industrial environments.
MOLEX 50361686 Standard Pin and Socket Housing Specifications:
- overview: Standard .093" Pin and Socket Connectors
- description: 2.36mm Diameter Standard .093" Pin and Socket Plug Housing, 2 Circuits, without Mounting Ears, Black, Glow-Wire Capable
- application: Power, Wire-to-Wire
- comments: Polarized to Mating Part, 17.0A max. can be achieved when housing is used with 42477 or 42478 terminals, Nylon, PA66 UL94V-2
- circuits_maximum: 2
- color_resin: Black
- flammability: 94V-2
- gender: Plug
- glow_wire_capable: Yes
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material_resin: Nylon, PA66
- net_weight_g: 1.449
- number_of_rows: 1
- packaging_type: Bag
- temperature_range_operating_c: -55° to +105°
- lead_free_process_capability: N/A
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Low-Halogen
- mates_with: 50361685
- use_with_crimp_terminals: 1189, 1190, 1380, 1381, 1433, 1434, 1973, 2151, 2273, 2870, 2871, 4272
