MOLEX 2153121032 Waterproof Connector

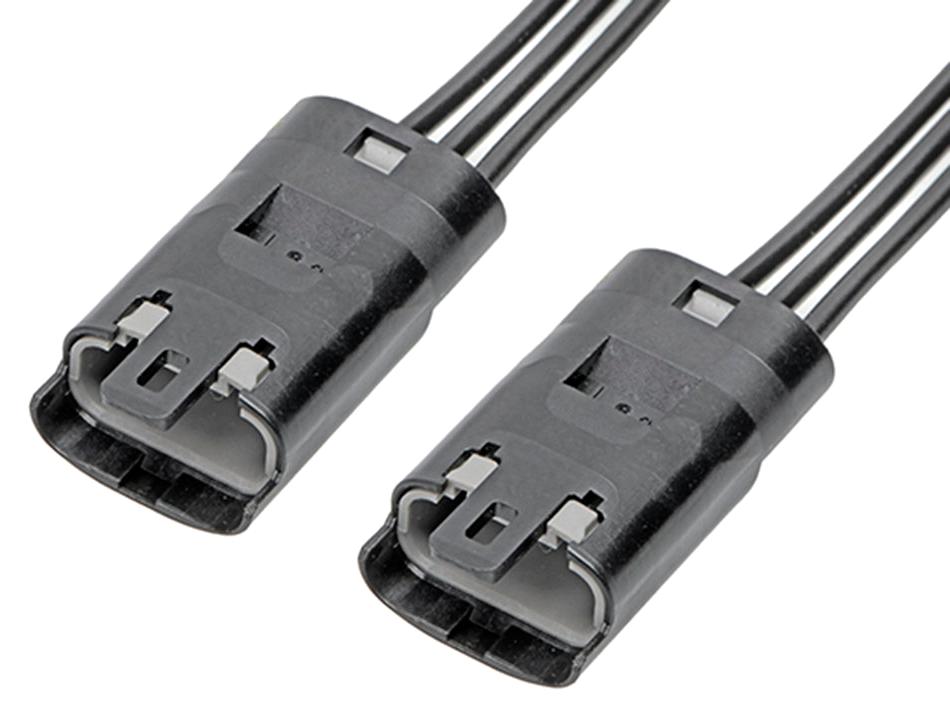

The Mizu-P25 Miniature Waterproof Cable Assemblies feature a compact 2.50mm pitch, supporting up to 4A current and rated IP67 for dust and water resistance. Suitable for automotive, consumer, and industrial automation, these assemblies include male-to-male connectors with a positive lock to ensure secure connection and an integral seal stopper for excellent sealing performance. Constructed with polyester housing, phosphor bronze contacts, and tin plating, they also incorporate high vibration-resistant spring-beam terminals designed for demanding environments, rated up to 60V and UL certified for reliable, waterproof electrical connections.
MOLEX 2153121032 Waterproof Connector Specifications:
- Pitch: 2.50mm
- Current Rating: 4A
- Voltage Rating: 60V
- Waterproof Rating: IP67
- Cable Length Options: Various, typically 300mm
- Number of Circuits: 3
- Housing Material: Polyester
- Contact Material: Phosphor bronze
- Contact Plating: Tin
- Cable Insulation Diameter: 1.40-1.90mm
- Wire Size: 20, 22 AWG
- Locking Mechanism: Positive lock with seal stopper
- Sealing: Integral seal for water resistance
- Certification: UL, RoHS compliant
- Maximum Current per Contact: 4A
- Maximum Voltage: 60V
Buy the Molex 215312 U–2013 Reliable Waterproof Connectors for Industrial Applications
Enhance your projects with Molex waterproof connector assemblies, featuring a compact 2.50mm pitch and rated IP67 for dust and water resistance. Designed for industrial, automotive, and consumer applications, these assemblies support up to 4A current and are UL certified. With secure locking mechanisms, integral seals, and high vibration resistance, they ensure long-lasting, reliable electrical connections in challenging environments. Choose Molex Series 215312 for dependable waterproof connectivity that meets rigorous industrial standards and provides excellent sealing performance every time.
Order your Molex Series 215312 waterproof cable assembly today and secure reliable, water-resistant connections for industrial automation and automotive projects.
