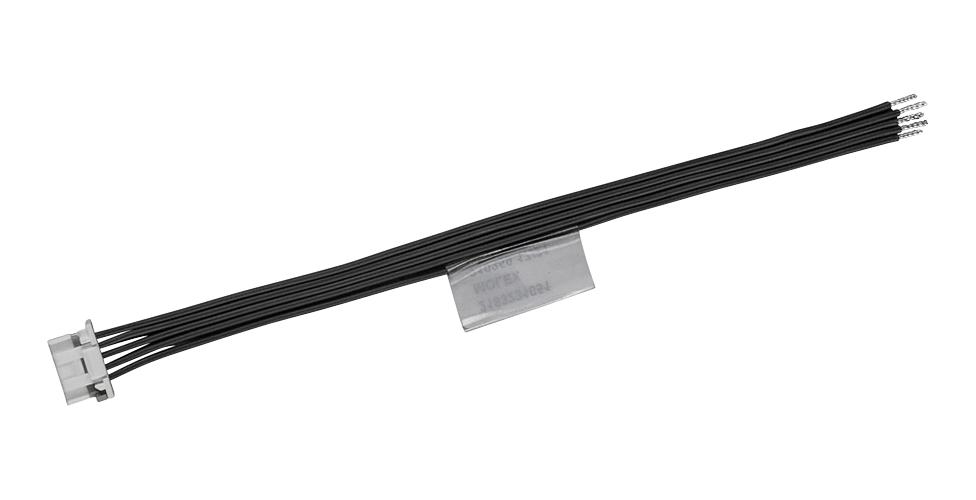

MOLEX 2183231053 DuraClik Pigtail Cable
The 218323 series DuraClik ISL-to-Pigtail cable assembly features a 2mm pitch with an audible click for secure mating confirmation. Its enclosed contact design prevents dust, debris, and wire tangling, enhancing harness assembly efficiency. Made of durable white polybutylene terephthalate (PBT), it supports voltages up to 60V AC/DC and uses 22 AWG wire, suitable for a wide temperature range from -40°C to +105°C. Employing crimp or compression termination, it withstands 20 mating cycles, ideal for automotive, industrial, and automation applications, and compatible with DuraClik right-angle and vertical headers.
MOLEX 2183231053 DuraClik Pigtail Cable Specifications:
- Pitch: 2.00mm
- Cable Length: 600.00mm
- Number of Circuits: 5
- Color - Resin: White
- Gender: Female-Pigtail
- Material - Metal: Copper Alloy
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Material - Resin: PBT
- Wire Insulation Diameter: 1.30mm
- Wire Size AWG: 22
- Wire/Cable Type: 1x0.35mm? FLRY-A
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 60V AC/DC
- Temperature Rating: -40°C to +105°C
- Durability: Up to 20 mating cycles
- Application: Automotive, industrial, automation
- Compatible With: DuraClik right-angle and vertical headers
Buy the Molex Series DuraClik ISL-to-Pigtail: 2183231053
Upgrade your wiring harness with the Molex DuraClik Pigtail Cable assembly, featuring 2mm pitch, 600mm length, and reliable 60V AC/DC support. Its enclosed contact design prevents dust and wire tangling, ensuring durability up to 20 mating cycles. Made of high-quality polypropylene, it withstands temperatures from -40°C to +105°C, supporting industrial, automotive, and automation applications. Easy crimp or compression termination enhances installation efficiency, making it a trusted choice for engineers seeking robust and flexible connector solutions online.
Order your Molex Series DuraClik ISL-to-Pigtail cable assembly today and ensure reliable connectivity in automotive and industrial projects.
