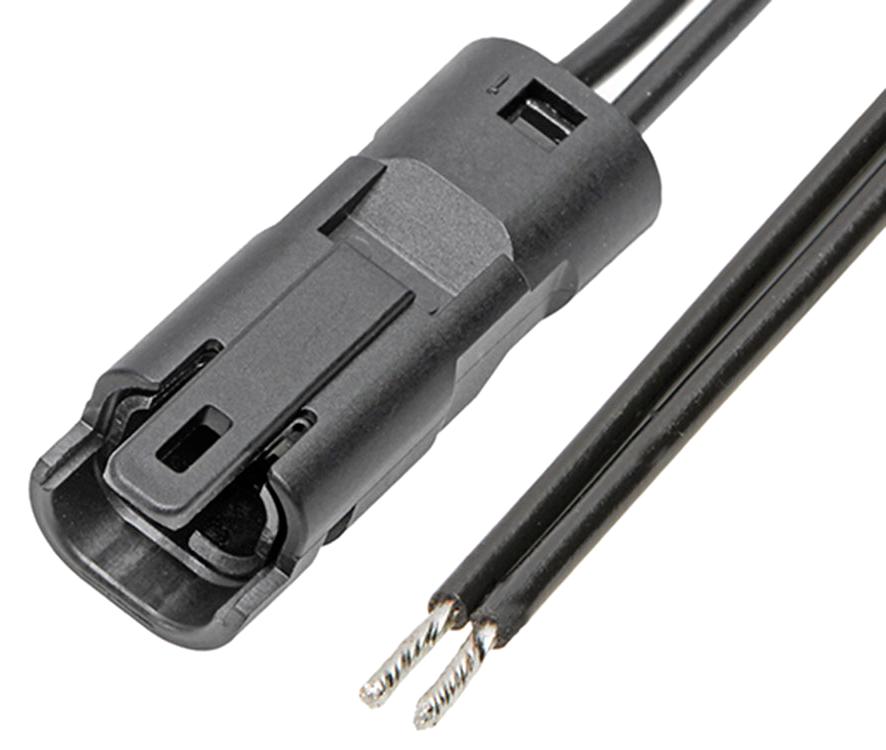

MOLEX 2153131021 Waterproof Connector
The Mizu-P25 miniature waterproof cable assemblies feature a 2.50mm pitch and are rated IP67 for dust and water resistance, ideal for automotive, industrial, and consumer use. These off-the-shelf male-to-pigtail connectors handle up to 4A and 60V, ensuring reliable performance in high-vibration environments thanks to a spring-beam terminal design for minimal deflection. Crafted with a durable polyester housing, phosphor bronze contacts with tin plating, and a positive lock mechanism for secure mating. UL-certified to meet strict safety standards, they are versatile, sealed, and suitable for demanding applications requiring robust water ingress protection.
MOLEX 2153131021 Waterproof Connector Specifications:
- Pitch: 2.50mm
- Ingress Protection: IP67
- Current Rating: 4A
- Voltage Rating: 60V
- Cable Length: 150.00mm
- Number of Circuits: 2
- Material - Metal: Phosphor Bronze
- Material - Plating: Tin
- Housing Material: Polyester
- Male-to-Pigtail bonded cable assembly
- Connector configuration: Discrete Wire Assembly, Sealed Assembly
- Locking mechanism: Positive lock to ensure complete mating
- Spring-beam terminal design: High-pressure, minimal deflection
- Standard: UL Certified (file no E29179)
- Application: Automotive, industrial automation, consumer electronics
Buy the Molex Series 215313 Waterproof Connector: 2153131021
Order the Molex waterproof connector online today to ensure secure, reliable electronic connections in challenging environments. Featuring IP67 protection, high current capacity of 4A, and robust construction with a polyester housing and tin-plated contacts, this connector offers excellent resistance to dust and water ingress. Its positive lock ensures secure mating, while the sealed design minimizes cable movement and vibration impact. Ideal for automotive, industrial automation, and consumer devices, this product guarantees durability, safety, and ease of installation for critical electronic systems. Purchase now for fast delivery and high-performance connectivity.
Buy Molex 2153131021 waterproof connector now and experience unmatched reliability and performance in demanding environments.
Frequently Asked Questions
Where can I buy MOLEX 2153131021?
You can click on the BUY or RFQ button to purchase 2153131021 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153131021?
You can download the 2153131021 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153131021?
MOLEX
