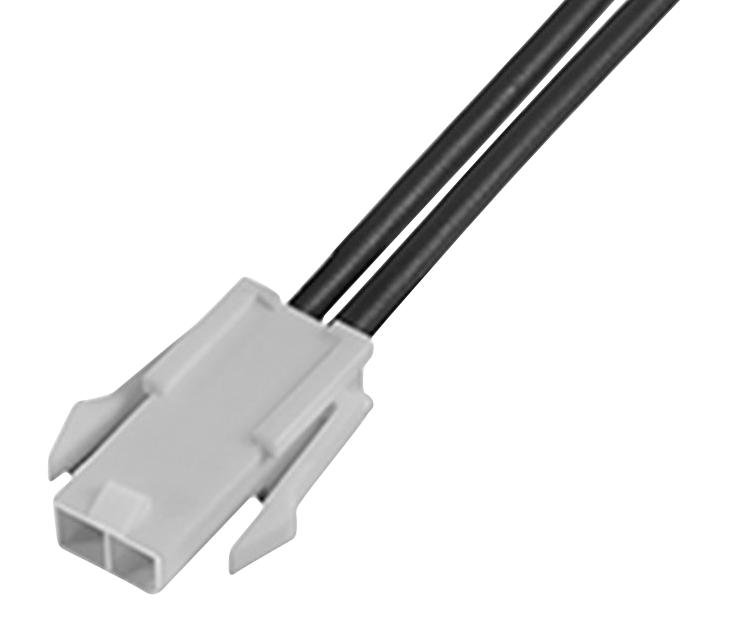

MOLEX 2153202023 Power Cable Assembly
This Mini-Fit Jr. female-to-female cable assembly from Molex features a 600mm length with gold-plated contacts, designed for power applications requiring reliable connectivity. It supports two circuits and is suitable for connector-to-connector configurations in electronic and electrical systems. The assembly uses high-quality brass metal components with a nylon insulation, ensuring durability and safety. The assembly is RoHS and REACH compliant, halogen-free, and rated for a maximum current of 9.0A with a voltage up to 600V, making it ideal for power and wire-to-wire applications requiring secure and stable connections.
MOLEX 2153202023 Power Cable Assembly Specifications:
- Cable Length: 600.00 mm
- Number of Circuits: 2
- Color - Resin: Black
- Gender: Female-Female
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Wire Insulation Diameter: 4.20 mm
- Wire Size AWG: 16
- Packaging Type: Bag
- Lock to Mating Part: Yes
- Terminating Style: Crimp or Compression
- Applications: Power, Wire-to-Wire, Connector to Connector
- RoHS, REACH compliance, Halogen-Free, UL 1015 rated
Buy the Molex Series Mini-Fit Jr. Power Cable: 2153202023
Buy the Molex Power Cable Assembly with Mini-Fit Jr. connectors online today. This 600mm black cable features gold-plated contacts, supporting two circuits for power and wire-to-wire connections. Made with durable brass and nylon materials, it ensures reliable, safe, and high-performance operation. RoHS and REACH compliant, rated for 9.0A and 600V, it is suitable for various industrial and electronic applications. Order now for quick delivery and ensure secure power connectivity in your projects with this high-quality cable assembly.
Get Molex 2153202023 today—built for power, safety, and long-lasting durability in electronic connections.
Frequently Asked Questions
Where can I buy MOLEX 2153202023?
You can click on the BUY or RFQ button to purchase 2153202023 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153202023?
You can download the 2153202023 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153202023?
MOLEX
