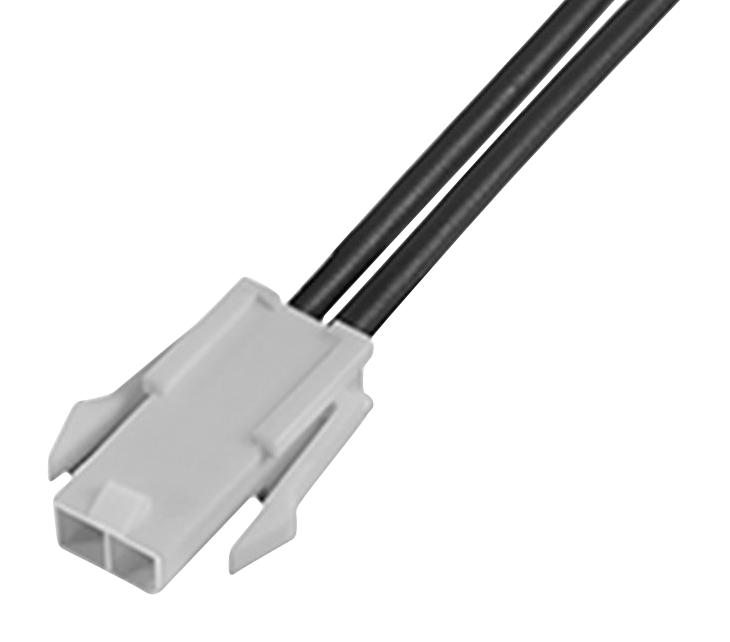

MOLEX 2153212023 Power Cable Assembly
This Mini-Fit Jr. female-to-pigtail cable assembly features a single-row configuration with a length of 600mm. It is designed for power applications, utilizing gold-plated contacts for reliable conductivity and corrosion resistance. The assembly consists of a female connector and a discrete wire cable, ideal for wire-to-wire and wire-to-board connections. Manufactured with durable nylon housing and brass metal parts, it supports a maximum current of 9.0A and voltage of 600V. Suitable for industrial electronics, it complies with RoHS directives and offers robust electrical performance.
MOLEX 2153212023 Power Cable Assembly Specifications:
- Cable Length: 600.00mm
- Circuits: 2
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 4.20mm
- Wire Size AWG: 16
- Wire/Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Packaging Type: Bag
- Pitch - Mating Interface: 4.20mm
- RoHS Compliance: Yes, RoHS, China RoHS, REACH SVHC compliant
- Status: Active
- Application: Power, Wire-to-Wire, Wire-to-Board
- Connector Type: Mini-Fit Jr.-to-Pigtail
- Assembly Configuration: Connector to Connector
Buy the Molex Series Mini-Fit Jr. Power Cable: 2153212023
Order the Molex power cable assembly designed for robust power connections in industrial electronics. Featuring gold-plated contacts, 600mm length, and UL certification, it ensures high-quality electrical performance. The durable nylon housing and brass contacts support a maximum current of 9.0A and voltage of 600V. Ideal for wire-to-wire or wire-to-board applications, this assembly provides reliable and corrosion-resistant connections. Purchase online now for quick delivery and dependable performance in professional electrical and electronic systems.
Get Molex 2153212023 today—built for power, durability, and reliable electrical connections in industrial applications.
