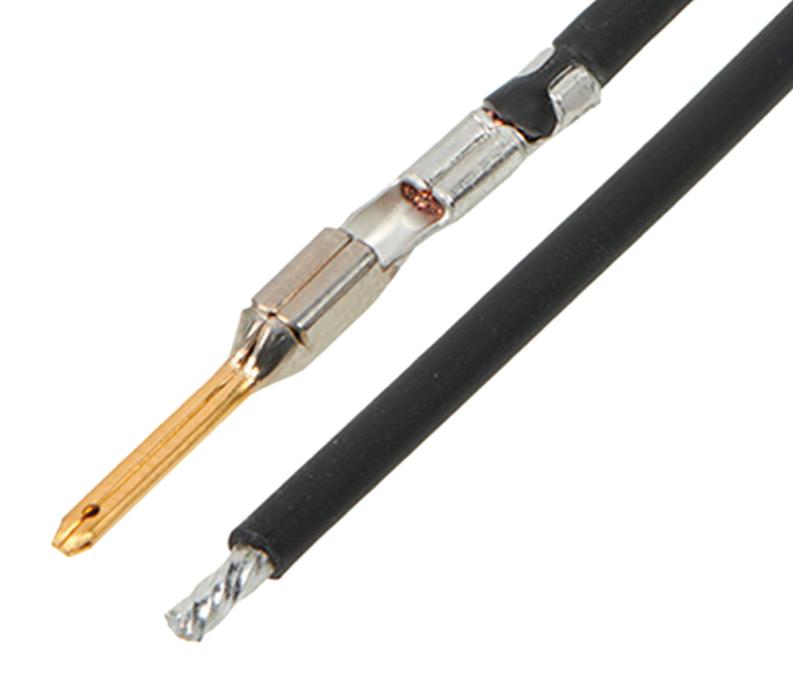

MOLEX 2163031203 MX150 Pre-Crimped Lead
The MOLEX 216303-1203 is an off-the-shelf pre-crimped lead assembly, specifically designed for applications requiring a ready-to-use connection. It connects MX150 terminals to pigtails, offering a convenient solution for power, wire-to-board, and wire-to-wire configurations. The gold plating ensures reliable electrical contact, while the 18 AWG wire gauge provides adequate current carrying capacity. This component is RoHS compliant and ideal for use with MX150 housing options.
MOLEX 2163031203 MX150 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- product_family: Cable Assemblies
- series: 216303
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Pre-crimped Lead Only
- connector_to_connector: MX150 Terminal-to-Pigtail
- cable_length: 225.00mm
- circuits_loaded: 1
- color_resin: Black
- material_metal: High Performance Alloy (HPA)
- material_plating: Gold
- net_weight: 3.099/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_max: 2.70mm
- wire_size_awg: 18
- wire_cable_type: TXL
- current_maximum_per_contact: Contact Molex
- voltage_maximum: 14V DC
- upc: 195842071339
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained Per D(2020)9139-DC (19 Jan 2021)
- halogen_free: Yes
- status: Low-Halogen
- china_rohs: Green Image
- rohs_phthalates: Not Contained
- use_with_housing: MX150 Dual Row Housing 33482, MX150 Single Row Housing 33481, MX150 Hybrid Housing 33486
- drawing_number: 2163031201-000
