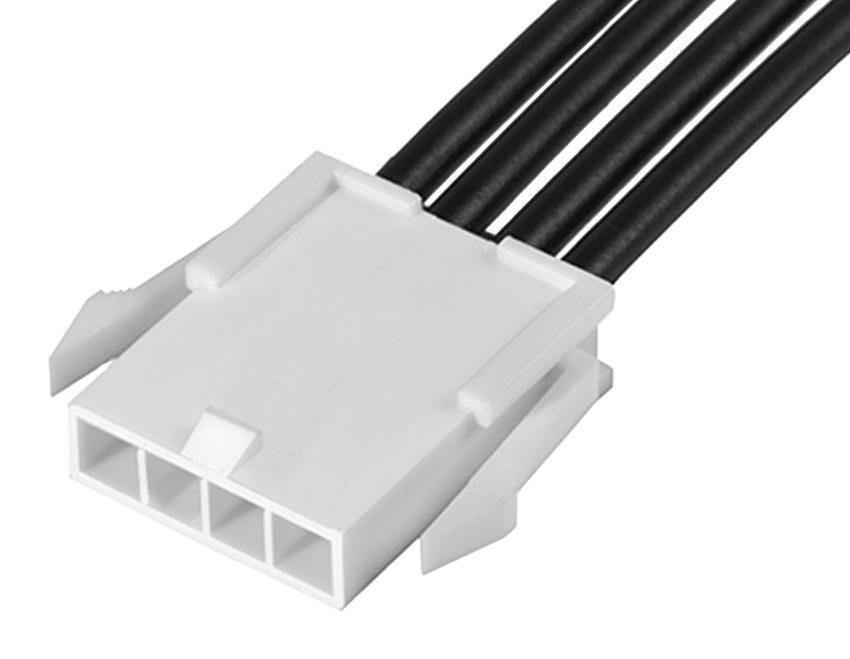

MOLEX 2153212042 Mini-Fit Jr. Power Connector
This Mini-Fit Jr. power connector assembly features a female-to-pigtail configuration with a 300mm cable length, designed for reliable power delivery in electronic systems. It includes four circuits with gold-plated contacts for optimal conductivity and corrosion resistance. The assembly uses durable materials like brass and nylon, supports a maximum current of 9.0A at 600V, and is RoHS and REACH compliant. Suitable for wire-to-wire applications, it offers a secure crimp or compression termination for robust electrical connections, making it ideal for power distribution in various electronic projects.
MOLEX 2153212042 Mini-Fit Jr. Power Connector Specifications:
- Cable Length: 300.00mm
- Circuits: 4
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Assembly Configuration: Connector to Connector
- Lock to Mating Part: Yes
- Packaging Type: Bag
- Pitch - Mating Interface: 4.20mm
- RoHS & REACH: Compliant
- Halogen-Free: No
- Rated for wire-to-wire connections with crimp or compression termination
Buy the Molex Series Mini-Fit Jr. Power Connector: 2153212042
Enhance your electronic projects with the reliable Mini-Fit Jr. power connector featuring four circuits, gold-plated contacts, and a 300mm cable length. Its durable construction using brass and nylon ensures excellent performance and long-lasting operation. Designed for wire-to-wire connections, it supports up to 9.0 amps at 600 volts, making it ideal for power distribution in various applications. The assembly employs secure crimp or compression termination, offering safety and stability. Order online today for a dependable, RoHS-compliant connection solution that simplifies electrical assembly and enhances device performance.
Order your Molex Series Mini-Fit Jr. Power Connector with 4 circuits and 300mm cable today and give your electronic projects the dependable power connection they deserve.
Frequently Asked Questions
Where can I buy MOLEX 2153212042?
You can click on the BUY or RFQ button to purchase 2153212042 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153212042?
You can download the 2153212042 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153212042?
MOLEX
