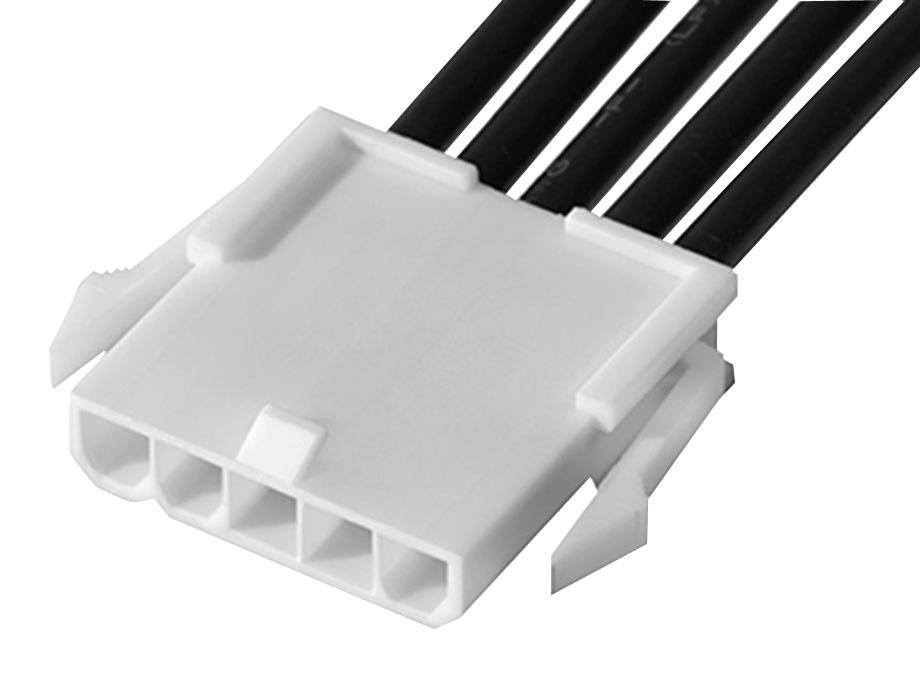

MOLEX 2153212051 Power Cable Assembly
This Mini-Fit Jr. Power Cable Assembly is a female-to-pigtail connector designed for power applications, featuring a single row, 150mm length, and five circuits. It offers reliable gold-plated contacts, a black nylon housing, and crimp termination, suitable for wire sizes 16 AWG with a maximum current of 9A and voltage of 600V. The assembly is RoHS and REACH compliant, halogen-free, and designed for easy connector-to-connector assembly in power distribution systems, ensuring durability and safety in industrial and electronic applications.
MOLEX 2153212051 Power Cable Assembly Specifications:
- Series: Mini-Fit Family
- Application: Power, Wire-to-Board, Wire-to-Wire
- Configuration: Single Ended Connector, Crimp or Compression Termination
- Cable Length: 150.00mm
- Number of Circuits: 5
- Color - Resin: Black
- Gender: Female-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Net Weight: 20.030g
- Pitch - Mating Interface: 4.20mm
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- RoHS + REACH Compliant
- Certifications: UL Listed (UL 1015)
- Status: Active, Halogen-Free
- Mates With: Mini-Fit Jr. Headers and Plugs
Buy the Molex 2153212051 – Reliable Power Connector for Industrial Applications
Enhance your power distribution setup with this reliable Mini-Fit Jr. Power Cable Assembly, featuring gold-plated contacts, a durable nylon housing, and a 150mm cable length. Designed for power applications, it supports 16 AWG wires and handles up to 9A at 600V, ensuring safety and performance. RoHS and REACH compliant, halogen-free, and easy to connect, this assembly is ideal for industrial electronic projects requiring robust, high-quality connectors for wire-to-wire or wire-to-board configurations.
Buy Molex 2153212051 now and ensure reliable power connections with durable, RoHS-compliant, gold-plated contacts suitable for industrial and electronic systems.
Frequently Asked Questions
Where can I buy MOLEX 2153212051?
You can click on the BUY or RFQ button to purchase 2153212051 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153212051?
You can download the 2153212051 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153212051?
MOLEX
