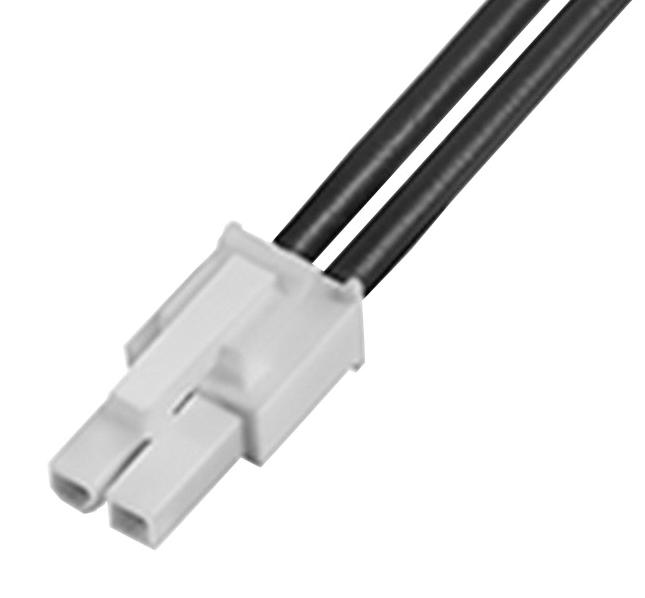

MOLEX 2153232021 Mini-Fit Jr. Cable Assembly
The MOLEX 2153232021 is a Mini-Fit Jr. male-to-pigtail cable assembly designed for power and wire-to-wire applications. It boasts a robust construction with a black nylon resin housing, brass material, and gold/tin plating for optimal conductivity and durability. This assembly is ideal for various industrial applications requiring secure and efficient power transmission, such as automotive, consumer electronics, and industrial equipment.
MOLEX 2153232021 Mini-Fit Jr. Cable Assembly Specifications:
- application: Power, Wire-to-Wire
- configuration: Single Ended
- cable_length: 150.00mm
- circuits_loaded: 2
- color_resin: Black
- gender: Male-Pigtail
- material_metal: Brass
- plating_mating: Gold (Au)
- plating_termination: Tin
- material_resin: Nylon
- net_weight_g: 8.644
- number_of_rows: 1
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.762µm
- plating_min_termination: 2.032µm
- wire_insulation_diameter_mm: 1.80-3.10
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_max_per_contact_a: 9.0
- voltage_max_v: 600
- upc: 193264597697
