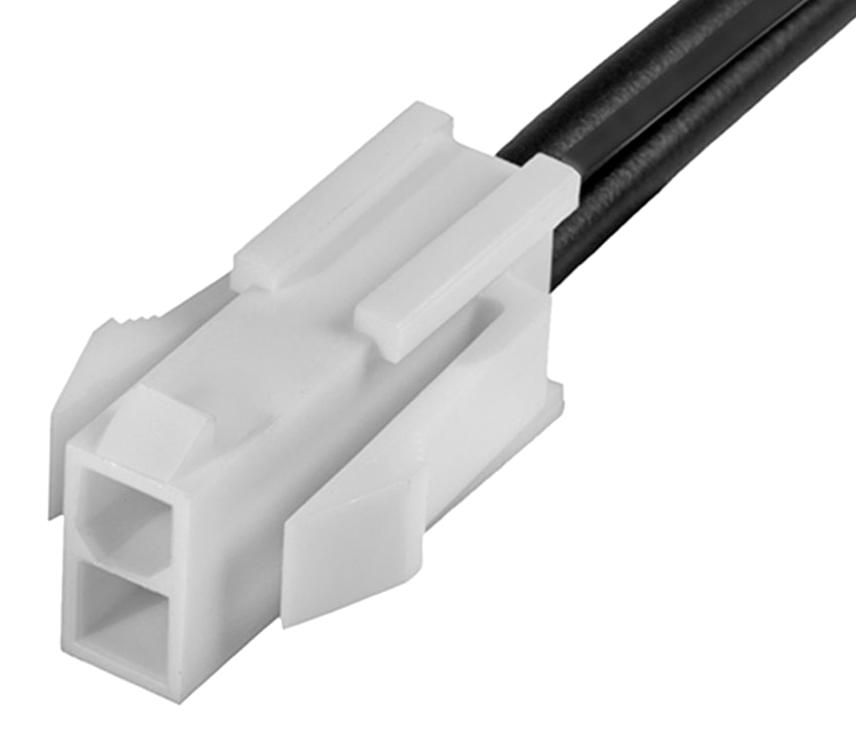

MOLEX 2153251021 Mini-Fit Jr. Cable Assembly
The MOLEX 2153251021 is a Mini-Fit Jr. Female-to-Female Off-the-Shelf (OTS) cable assembly designed for power, wire-to-board, and wire-to-wire applications. This assembly features a dual-row configuration, a 150mm length, and tin plating on both mating and termination interfaces. It is suitable for applications requiring robust power connections and is compatible with various MOLEX connector series. The assembly utilizes a black nylon resin for insulation and brass for metal components, ensuring durability and reliable performance.
MOLEX 2153251021 Mini-Fit Jr. Cable Assembly Specifications:
- application: Power, Wire-to-Board, Wire-to-Wire Assembly
- configuration: Dual Ended
- connectors: Connector to Connector Mini-Fit Jr. Both Ends
- cable_length: 150.00mm
- circuits_loaded: 2
- color_resin: Black
- material_metal: Brass
- material_plating_mating: Tin (Sn)
- material_plating_termination: Tin (Sn)
- material_resin: Nylon
- net_weight_g: 9.186
- number_of_rows: 2
- pitch_mating_interface: 4.20mm
- plating_min_mating: 0.889µm
- plating_min_termination: 0.889µm
- single_ended: No
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter_mm: 1.80-3.10mm
- wire_size_awg: 16
- wire_cable_type: UL 1015
- current_maximum_per_contact_a: 9.0
- voltage_maximum_v: 600
- upc: 193264589562
- material_info: Please check WWW.MOLEX.COM for latest part information
