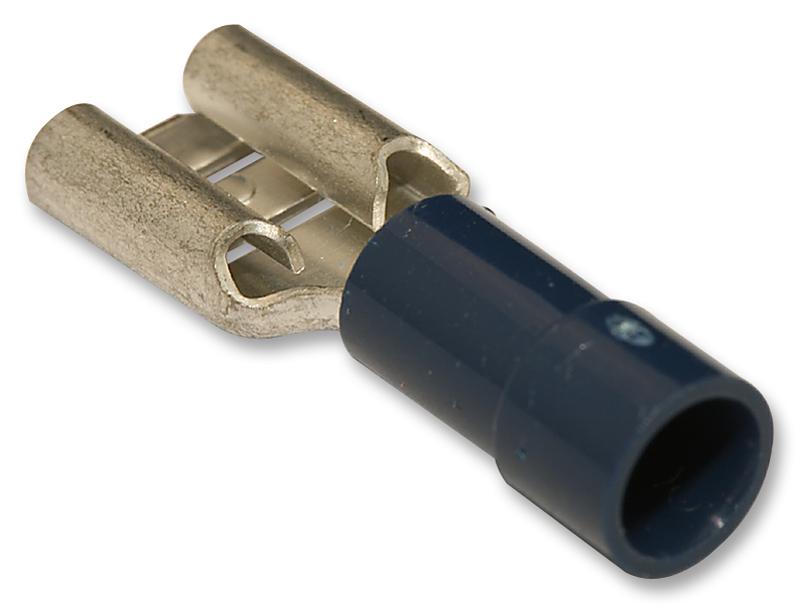

MOLEX 190170032 Quick-Disconnect Terminal
The InsulKrimp Quick-Disconnect Female terminal is designed for 14-16 AWG wires, featuring a box/tab design measuring 4.75 x 0.81mm, made from brass with tin plating for durability. It offers a maximum voltage rating of 600V and operates within a temperature range of -50°C to +105°C. This insulated, crimp quality equipment ensures reliable electrical connection and easy installation. Suitable for various electrical applications, it complies with RoHS, UL, and CSA standards, making it a versatile choice for control panels, wiring harnesses, and electronic assemblies.
MOLEX 190170032 Quick-Disconnect Terminal Specifications:
- Wire Range: 14-16 AWG (1.30-2.00 mm²)
- Voltage Rating: 600V
- Temperature Range: -50°C to +105°C
- Material: Brass
- Plating: Tin
- Insulation Material: PVC
- Tab Width: 4.75mm
- Tab Thickness: 0.81mm
- Cargo Type: Box, Tab
- Gender: Female
- Flammability: 94V-0
- Operating Orientation: Straight
- Packaging: Bag
- Certification: UL, CSA
- RoHS Compliant
- Mechanical Features: Lock to Mating Part, Polarized to Mating
Buy the Molex Series 19017 InsulKrimp Quick Disconnect Female: 190170032
Purchase the Molex Series 19017 InsulKrimp Quick Disconnect Female terminal online today. Crafted from durable brass with tin plating, it supports up to 600V and operates in temperatures from -50°C to +105°C. Designed for AWG 14-16 wires, it features an insulated, reliable crimp design ensuring safe and secure electrical connections. Suitable for control panels and electronic assemblies, it meets UL, CSA, and RoHS standards. Convenient packaging and proven quality make it an essential component for electrical professionals.
Order your Molex Series 19017 InsulKrimp Quick Disconnect Female terminal today and ensure reliable, high-quality electrical connections for your projects.
Frequently Asked Questions
Where can I buy MOLEX 190170032?
You can click on the BUY or RFQ button to purchase 190170032 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 190170032?
You can download the 190170032 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 190170032?
MOLEX
