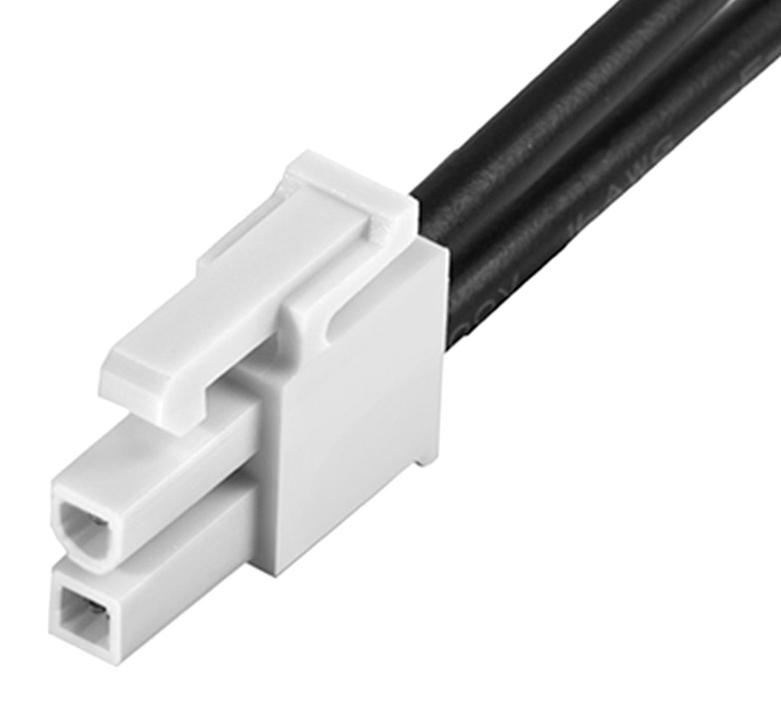

MOLEX 2153272021 Power Connector Assembly
The Mini-Fit Jr. male-to-male cable assembly is designed for power and wire-to-wire connections, featuring dual rows and a 150mm length. With gold plating for corrosion resistance, it supports up to 9A and 600V. The assembly employs crimp or compression termination, suitable for discrete wire sizes 16 AWG, with a pitch of 4.20mm. Made from nylon resin with brass material, it ensures durability and reliable electrical performance in power and electronic systems. Compatible with Mini-Fit Jr. receptacles and TPA cable assemblies, it is ideal for industrial and electrical applications requiring secure, high-quality connections.
MOLEX 2153272021 Power Connector Assembly Specifications:
- Assembly Length: 150.00mm
- Number of Circuits: 2
- Color: Black
- Gender: Male-Male
- Lock to Mating Part: Yes
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size AWG: 16
- Cable Type: Discrete Wire Assembly
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Pitch - Mating Interface: 4.20mm
- Plating min - Mating: 0.762um
- Plating min - Termination: 2.032um
- Termination Interface Style: Crimp or Compression
- Materials: Nylon, Brass, Gold plating, Tin plating
- Certifications: UL 1015
- RoHS Compliant: Yes
Buy the Buy Molex Mini-Fit Jr. Part Number 2153272021 Online
Purchase the Molex Mini-Fit Jr. male-to-male cable assembly online, a reliable power connection solution with dual rows, gold plating, and 9A/600V rating. Perfect for wire-to-wire applications, it features crimp or compression termination, nylon construction, and compatibility with Mini-Fit Jr. receptacles. With a 150mm length, it supports 16 AWG wire and is compliant with RoHS standards, ensuring safety and durability. Get this high-quality, easy-to-install assembly today and improve your power distribution systems efficiently.
Buy Molex 2153272021 now and experience unmatched reliability and high-performance power connections designed for your industrial and electronic systems.
