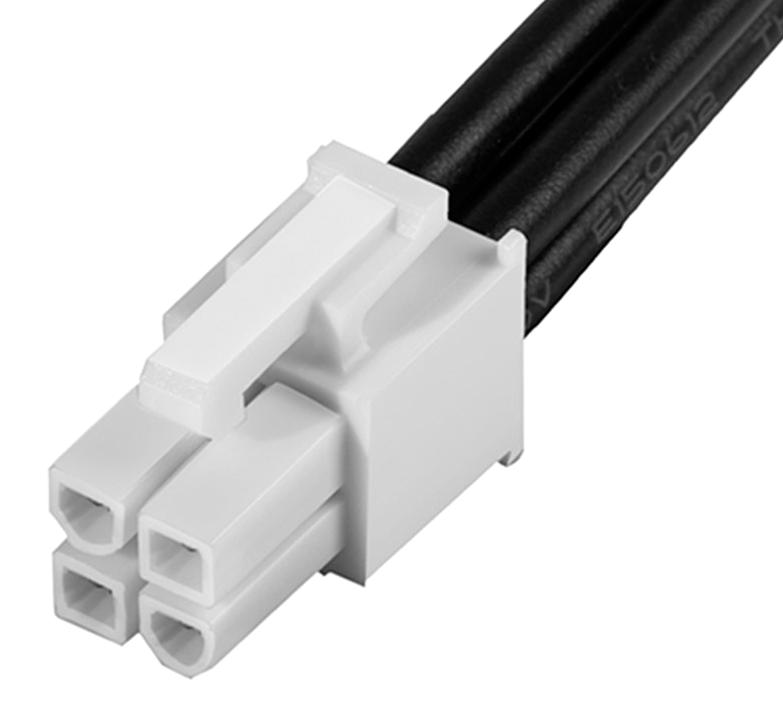

MOLEX 2153272043 Power Cable Assembly
This Mini-Fit Jr. Male-to-Male Off-the-Shelf cable assembly features dual rows with a length of 600mm, gold-plated contacts, and 4 circuits. The assembly is ideal for power applications, wire-to-wire connections, and features a robust design with brass and nylon materials. The connector mates with Mini-Fit Jr. receptacles, ensuring secure, reliable connections with crimp or compression termination styles. Its UL 1015 wire insulation and maximum current of 9A per contact make it suitable for high-performance power and signal transmission in demanding electronic systems. Compliance with RoHS standards ensures environmental safety.
MOLEX 2153272043 Power Cable Assembly Specifications:
- Material - Metal: Brass
- Material - Resin: Nylon
- Material - Plating: Gold (mating), Tin (termination)
- Cable Length: 600.00mm
- Circuits: 4
- Wire Insulation Diameter: 1.80-3.10mm
- Wire Size: AWG 16
- Voltage - Maximum: 600V
- Current - Maximum per Contact: 9.0A
- Gender: Male-Male
- Color - Resin: Black
- Pitch - Mating Interface: 4.20mm
- Plating min - Mating: 0.762um
- Plating min - Termination: 2.032um
- Application: Power, Wire-to-Wire
- Assembly Configuration: Dual Ended Connectors
- RoHS Compliant: Yes
- UL 1015 wire insulation
Buy the Molex Series 215327 Power Connectors: 2153272043
Purchase the Molex Power Cable Assembly designed for high-performance power wiring with 4 circuits and 600mm length. Gold-plated contacts and UL 1015 wire insulation ensure excellent conductivity and safety. Its dual-ended male-to-male configuration is perfect for Wire-to-Wire connections in demanding electronic systems. Made from durable brass and nylon materials, this assembly meets RoHS standards, providing environmental safety. Whether for industrial, automation, or electronic applications, this reliable cable assembly guarantees secure, efficient power transmission and easy installation, making it an essential component in modern power distribution systems.
Buy Molex 2153272043 now and experience unmatched reliability and power transmission efficiency with robust male-to-male cable assemblies.
Frequently Asked Questions
Where can I buy MOLEX 2153272043?
You can click on the BUY or RFQ button to purchase 2153272043 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153272043?
You can download the 2153272043 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153272043?
MOLEX
