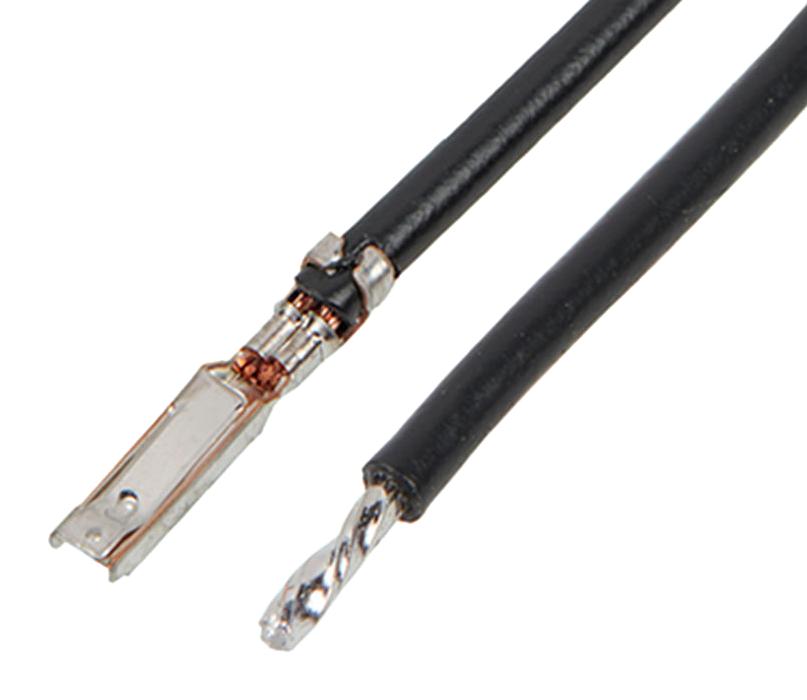

MOLEX 2178411121 Mizu-P25 Pre-Crimped Lead
The MOLEX 217841-1121 is a pre-crimped lead cable assembly offering a convenient and reliable connection solution for various applications. This assembly features a Mizu-P25 female connector on one end and a pigtail on the other, providing flexibility in connecting devices. The tin plating ensures excellent conductivity and corrosion resistance. With a length of 75mm and 20 AWG wire, it's suitable for signal transmission in wire-to-wire applications. The component is RoHS compliant and designed for ease of use and secure connections.
MOLEX 2178411121 Mizu-P25 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- series: 217841
- application: Signal, Wire-to-Wire
- assembly_configuration: Pre-crimped Lead Only
- connector_type: Mizu-P25-to-Pigtail
- cable_length: 75.00mm
- wire_size: 20 AWG
- color: Black
- circuits_loaded: 1
- gender: Female-Pigtail
- material_metal: Phosphor Bronze
- material_plating_mating: Tin
- material_plating_termination: Tin
- wire_insulation_diameter: 1.40-1.90mm
- voltage_maximum: 125V
- termination_interface_style: Crimp or Compression
- net_weight: 0.632/g
- single_ended: Yes
- halogen_free: Yes
- upc: 195842149861
