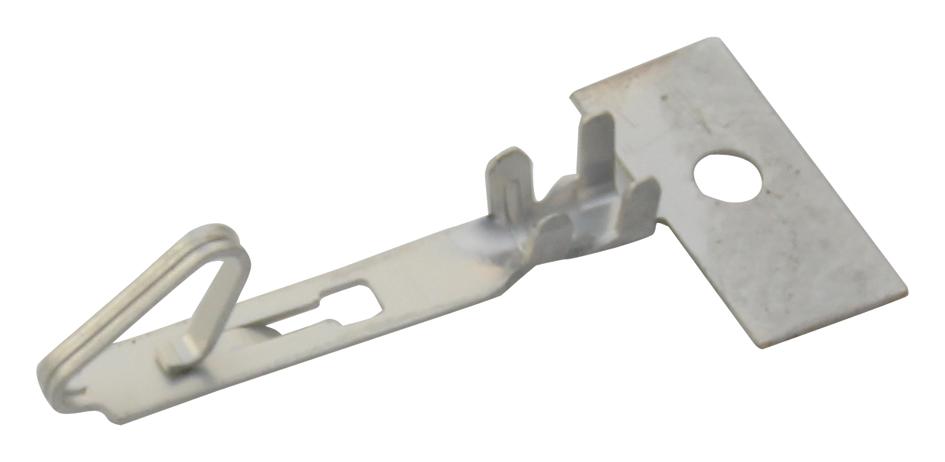

MOLEX 2004490001 EdgeLock Crimp Terminal
This EdgeLock wire-to-edge-card signal system features a 2.00mm pitch crimp terminal made of phosphor bronze with tin plating. It is designed for reliable electrical connections in signal applications, accommodating wire sizes of 22 and 24 AWG with a maximum current of 3.0A and voltage of 125V. The terminal is provided in a reel for efficient handling and assembly, with a durable design supporting up to 30 mating cycles. Compliant with RoHS and low-halogen standards, it ensures environmental safety and high performance in electronic devices.
MOLEX 2004490001 EdgeLock Crimp Terminal Specifications:
- Pitch: 2.00mm
- Material - Metal: Phosphor Bronze
- Material - Plating Mating: Tin
- Material - Plating Termination: Tin
- Wire Size: 22 and 24 AWG
- Wire Insulation Diameter: 1.10-1.40mm
- Current - Maximum per Contact: 3.0A
- Voltage - Maximum: 125V
- Durability: Up to 30 mating cycles
- Packaging: Reel
- RoHS Compliance: Yes
- Halogen-Free: Yes
- Low-Halogen: Yes
Buy the Buy Molex EdgeLock Wire-to-Edge-Card Signal Part Number 2004490001 Online
Secure your electronic connections with the EdgeLock Crimp Terminal, designed for wire-to-edge-card applications. Made of durable phosphor bronze with tin plating, it supports 22 and 24 AWG wires and handles up to 3A and 125V. Packaged in reel form for efficient assembly, this terminal offers up to 30 mating cycles, ensuring long-lasting performance. Its RoHS and low-halogen compliance make it an environmentally friendly choice for reliable, high-quality signal connections in various electronic devices.
Buy Molex 2004490001 now and experience unmatched reliability and performance in electronic edge connection systems.
