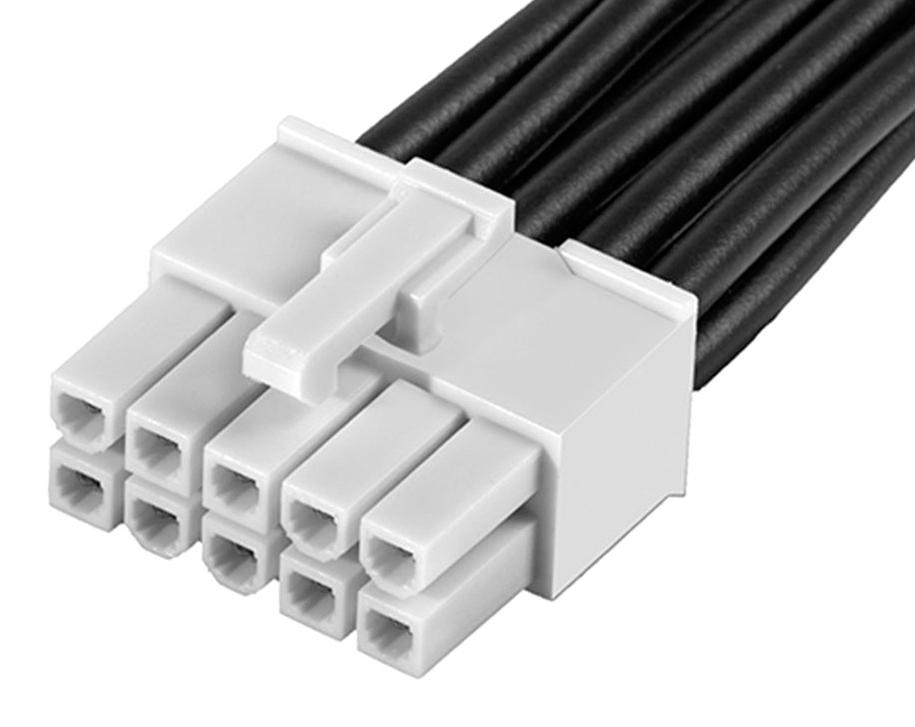

MOLEX 2153282103 Mini-Fit Jr. Power Cable Assembly
The Mini-Fit Jr. Male-to-Pigtail Off-the-Shelf Cable Assembly features a dual-row design with 10 circuits, 600mm length, and gold plating, ideal for power applications. Made with durable nylon resin, brass metal, and tin plating, it supports a maximum current of 9.0A and a voltage of 600V. The assembly connects Mini-Fit Jr. receptacles and is suitable for wire sizes 16 AWG with a wire insulation diameter of 2.032mm. Its reliable crimp or compression termination ensures a secure connection for electronic and power systems, meeting RoHS and UL standards.
MOLEX 2153282103 Mini-Fit Jr. Power Cable Assembly Specifications:
- Cable Length: 600.00mm
- Number of Circuits: 10
- Color - Resin: Black
- Gender: Male-Pigtail
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Material - Resin: Nylon
- Wire Insulation Diameter: 2.032mm
- Wire Size AWG: 16
- Maximum Current per Contact: 9.0A
- Maximum Voltage: 600V
- Termination Interface: Crimp or Compression
- Wire/Cable Type: Discrete Wire
- Application: Power, Wire-to-Wire, Connector to Connector
- Number of Rows: 2
- Pitch - Mating Interface: 4.20mm
- RoHS and UL Compliant
Buy the Molex Series Mini-Fit Jr. Power Cable: 2153282103
Shop the Molex Mini-Fit Jr. Power Cable Assembly online today for a durable, high-performance power connection solution. With 10 circuits and a length of 600mm, it features gold-plated contacts for optimal conductivity and longevity. Made from robust nylon resin with brass metal components, supporting up to 9A and 600V, it is suitable for wire sizes 16 AWG. Its crimp or compression termination provides secure connections, ideal for power distribution in electronic systems, meeting all RoHS and UL standards. Elevate your project quality now.
Order your Molex Series Mini-Fit Jr. power cable assembly today and ensure reliable, high-quality power connections for your electronic projects.
