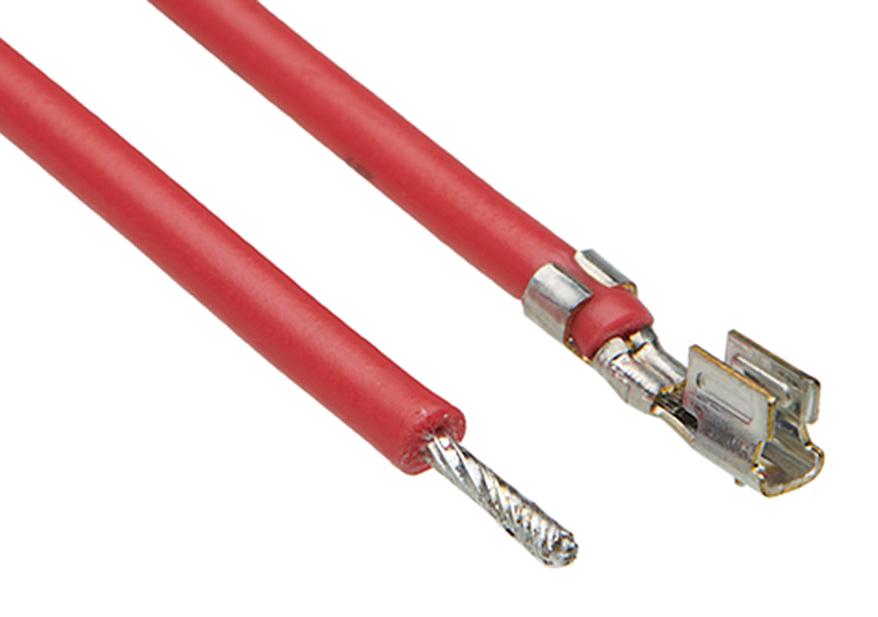

MOLEX 2175112112 L1NK 250 Pre-Crimped Lead
The MOLEX 217511-2112 is a pre-crimped lead assembly within the L1NK 250 series, providing a convenient and reliable connection solution. This assembly features a female-to-pigtail configuration, a 150mm length, and 24 AWG wire with a red resin coating. It's ideal for applications requiring pre-terminated connections, reducing assembly time and ensuring consistent quality. The tin-plated copper alloy terminals offer excellent conductivity and corrosion resistance, making it suitable for various industrial and commercial applications.
MOLEX 2175112112 L1NK 250 Pre-Crimped Lead Specifications:
- overview: Off-the-Shelf Pre-Crimped Leads
- assembly_configuration: Pre-crimped Lead Only
- connector_type: L1NK 250 Terminal-to-Pigtail
- cable_length: 150.00mm
- circuits_loaded: 1
- color_resin: Red
- material_metal: Copper Alloy
- plating_mating: Tin
- plating_termination: Tin
- material_resin: PVC
- net_weight: 0.843/g
- packaging_type: Bag Single Ended
- termination_interface_style: Crimp or Compression
- wire_insulation_diameter: 1.42mm-1.60mm
- wire_size_awg: 24
- wire_cable_type: UL 1569
- current_max_per_contact: 6.5A
- voltage_max: 250V AC (RMS)/DC
- upc: 195842119710
- elv: Not Relevant
- rohs: Compliant
- reach_svhc: Not Contained
- halogen_free_status: Not Low-Halogen
- sales_drawing: 2175112111-000
Buy the 217511-2112 MOLEX L1NK 250 Pre-Crimped Lead | myMectronic
Purchase the MOLEX 217511-2112 L1NK 250 Pre-Crimped Lead securely and reliably online.
Buy Now
Frequently Asked Questions
Where can I buy MOLEX 2175112112?
You can click on the BUY or RFQ button to purchase 2175112112 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2175112112?
You can download the 2175112112 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2175112112?
MOLEX
