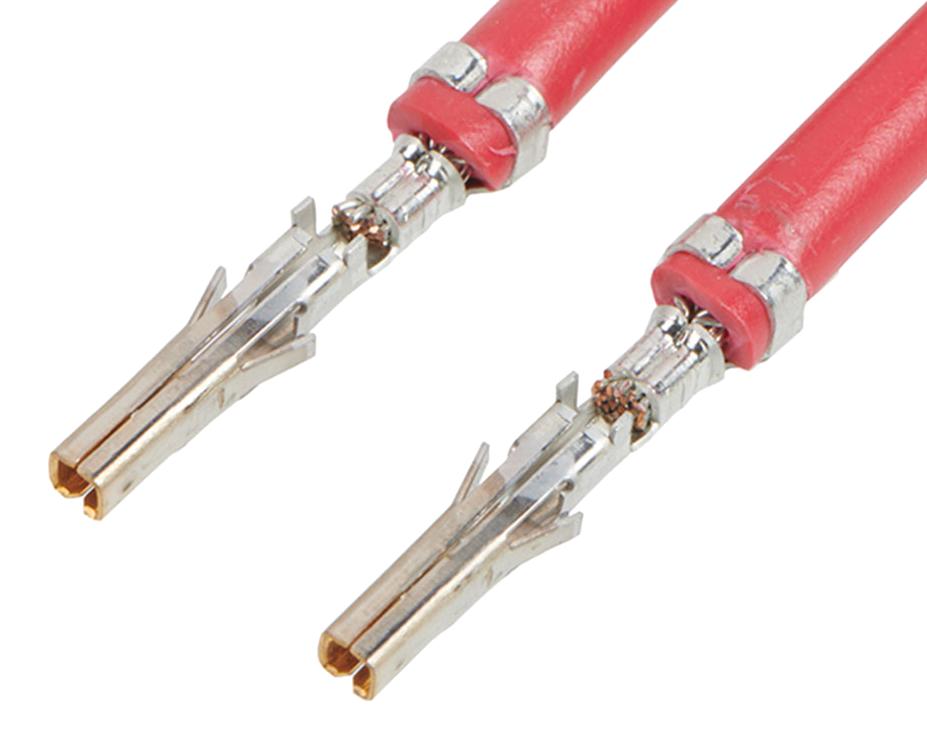

MOLEX 2153402224 Power Connector
These pre-crimped leads are designed for Mini-Fit Jr. connectors, featuring gold plating for reliable electrical connections. They are 300 mm long, with a 16 AWG wire size and red insulation. The leads are female-to-female, suitable for wire-to-wire and connector-to-connector applications. Constructed with brass metal and tin-plated termination, they are UL 1015 rated for 9A and 600V, ensuring high performance and safety. Ideal for power and wiring assemblies, these off-the-shelf, high-quality leads simplify assembly and enhance connection durability.
MOLEX 2153402224 Power Connector Specifications:
- Cable Length: 300.00 mm
- Wire Size: 16 AWG
- Wire Insulation Diameter: 1.80-3.10 mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Color - Resin: Red
- Gender: Female-Female
- Termination Interface: Crimp or Compression
- Net Weight: 6.948 g
- Packaging Type: Bag
- Application: Power, Wire-to-Board, Wire-to-Wire
- Assembly Configuration: Connector to Connector
- Status: Active
Buy the Molex Series 215340 Power Connectors: 2153402224
Enhance your electronic assemblies with Molex Series 2153402224 pre-crimped female-to-female power leads. These 16 AWG, gold-plated connectors are 300 mm long, designed for power and wiring projects requiring durable, high-performance connections. Easy to install with crimp or compression interface, they support up to 9A at 600V, ensuring safety and reliability. Perfect for wire-to-wire or connector-to-connector applications, these off-the-shelf leads streamline your assembly process and improve electrical performance in industrial, commercial, and DIY projects.
Order your Molex Series 2153402224 pre-crimped female leads today and enhance your wiring efficiency with reliable, high-quality connections.
