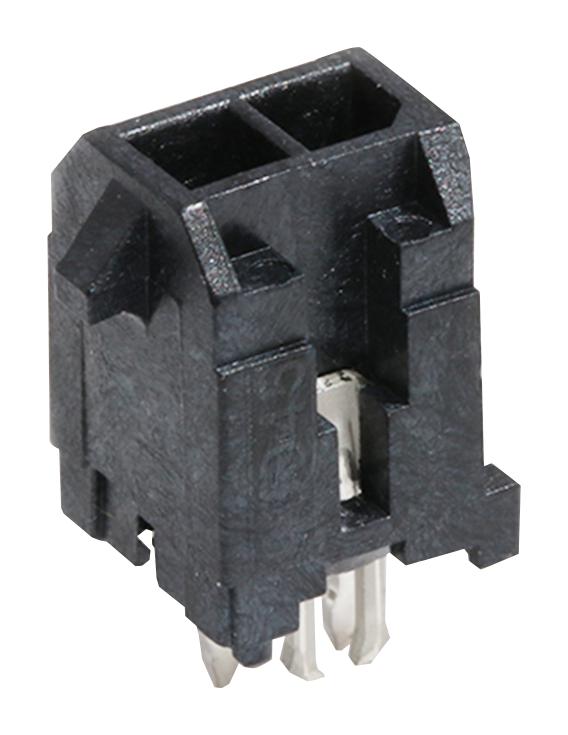

MOLEX 430450225 Micro-Fit Connector
The Micro-Fit 3.0 Vertical Header offers a reliable 3.00mm pitch, dual-row design with 2 circuits and PCB press-fit capability. Crafted from high-temperature thermoplastic with gold-plated brass contacts, it supports solder-type mounting and offset through-hole design for power and signal applications. Tested for flammability and glow-wire compatibility, this connector features a shrouded, stackable, and polarized interface suitable for PCB mounting. It withstands -40°C to +105°C, providing up to 30 mating cycles for durable, high-performance electrical connections in industrial and consumer electronics.
MOLEX 430450225 Micro-Fit Connector Specifications:
- Pitch: 3.00mm
- Circuits: 2
- Color - Resin: Black
- Mating Height: 17.64mm
- Material - Metal: Brass
- Material - Plating: Gold
- Material - Termination: Tin
- Material - Resin: High Temperature Thermoplastic
- Maximum Current per Contact: 8.5A
- Maximum Voltage: 600V
- Operating Temperature Range: -40°C to +105°C
- Mounting Style: Through Hole, Kinked Pin
- Number of Mating Cycles: 30
- Flammability: UL 94V-0
- Glow-Wire Capable: Yes
- PCB Thickness - Recommended: 1.60mm
- Orientation: Vertical
- Surface Mount Compatible: No
- Stackable: Yes
- Polarized to PCB: Yes
Buy the Molex 0430450225 – Reliable Micro-Fit 3.0 Connector for Industrial Applications
Discover the dependable Molex Micro-Fit 3.0 Connector series, designed for power and signal connections in industrial equipment. With a 3.00mm pitch, dual-row configuration, and press-fit PCB mounting, this high-temperature thermoplastic component meets stringent safety standards with UL and RoHS compliance. Featuring gold-plated brass contacts, it supports up to 8.5A and 600V, operating reliably from -40°C to +105°C. Its stackable, polarized design ensures secure electrical contacts, making it an essential choice for professional electronics assembly and manufacturing environments.
Order your Molex Series0430450225 high-temperature power connector today and ensure reliable, durable connections for your industrial projects.
Frequently Asked Questions
Where can I buy MOLEX 430450225?
You can click on the BUY or RFQ button to purchase 430450225 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 430450225?
You can download the 430450225 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 430450225?
MOLEX
