MOLEX 2153402225 Mini-Fit Jr. Female-to-Female Connector

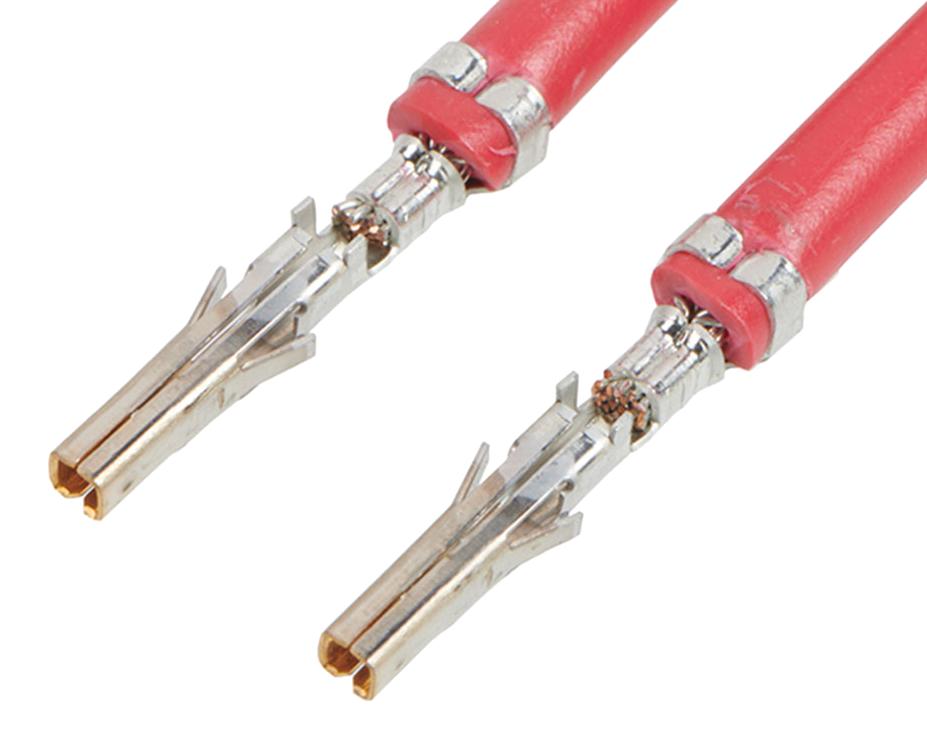

This pre-crimped lead features a Mini-Fit Jr. female-to-female connector with gold (Au) plating, 450 mm length, and 16 AWG wire size. Designed for reliable connector-to-connector assembly, it offers excellent conductivity with brass contacts, tin plating termination, and a maximum current of 9.0A at 600V. Suitable for power, wire-to-wire, and wire-to-board applications, it is RoHS and REACH compliant. The lead simplifies wiring tasks, ensuring secure connection and efficient installation in various electronic assemblies and industrial systems, making it ideal for custom power and control projects.
MOLEX 2153402225 Mini-Fit Jr. Female-to-Female Connector Specifications:
- Cable Length: 450.00mm
- Wire Size: 16 AWG
- Wire Insulation Diameter: 1.80-3.10mm
- Material - Metal: Brass
- Material - Plating Mating: Gold
- Material - Plating Termination: Tin
- Current - Maximum per Contact: 9.0A
- Voltage - Maximum: 600V
- Color - Resin: Red
- Gender: Female-Female
- Termination Interface: Crimp or Compression
- Net Weight: 10.132g
- Packaging Type: Bag
- Application: Power, Wire-to-Board, Wire-to-Wire
- Assembly Configuration: Connector to Connector
- RoHS Compliance: Yes
- REACH SVHC: Not Contained
Buy the Molex Series 215340 Power Connectors: 2153402225
Enhance your electronic projects with the Molex Mini-Fit Jr. female-to-female pre-crimped lead, featuring 16 AWG wire, 450mm length, and gold plating for superior conductivity. Designed for secure connector-to-connector assembly, it supports current up to 9.0A at 600V, ensuring excellent power transfer. RoHS and REACH compliant, this durable component simplifies assembly, provides reliable connections, and is ideal for power, wire-to-wire, and wire-to-board applications in industrial and consumer electronics. Order online today for quick and dependable delivery.
Buy Molex 2153402225 now and experience unmatched reliability and performance in power and wire-to-wire applications.
Frequently Asked Questions
Where can I buy MOLEX 2153402225?
You can click on the BUY or RFQ button to purchase 2153402225 from an authorized MOLEX distributor.
How do I troubleshoot issues or seek technical support for part 2153402225?
You can download the 2153402225 datasheet or visit the MOLEX website for support.
Who is the manufacturer of 2153402225?
MOLEX
