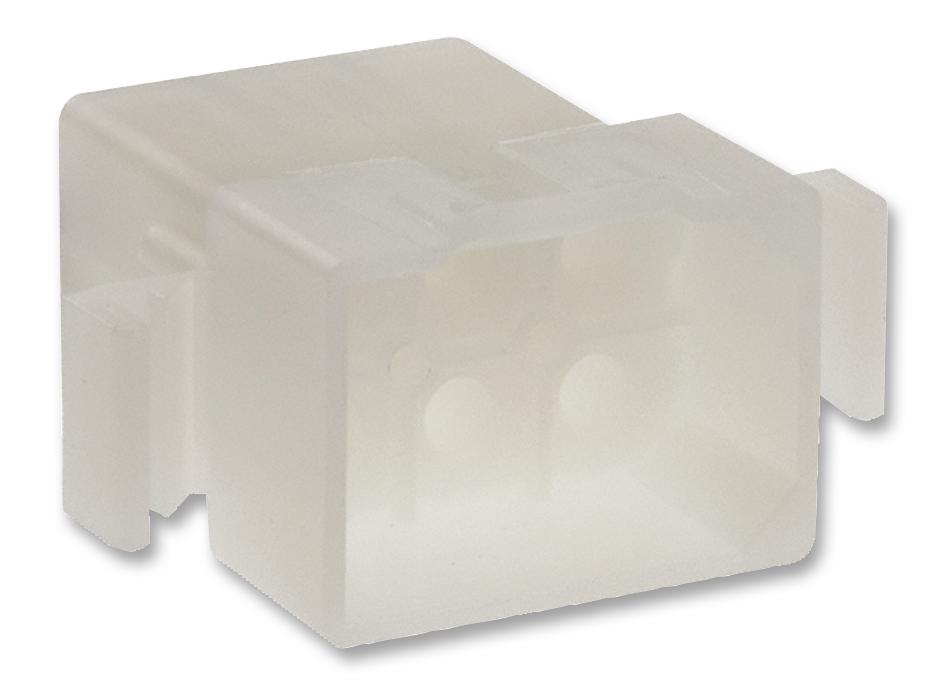

MOLEX 19092061 Standard Pin and Socket Housing
The MOLEX 19-09-2061 is a robust connector housing designed for reliable wire-to-wire connections in power applications. This housing features a .093" pin and socket design with a diameter of 2.36mm, ensuring compatibility with a range of related components. The positive latch mechanism provides a secure and dependable connection, while the polarized design prevents incorrect mating. It is suitable for applications requiring standard mounting ears and is designed to withstand operating temperatures from -40°C to +105°C. The housing is constructed from Nylon resin and is RoHS compliant, contributing to environmentally responsible designs.
MOLEX 19092061 Standard Pin and Socket Housing Specifications:
- overview: Standard .093" Pin and Socket Connectors
- description: 2.36mm Diameter, .093" Pin and Socket Plug Housing with Positive Latch, 6 Circuits, with Standard Mounting Ears
- application: Power, Wire-to-Wire
- comments: Polarized to Mating Part
- maximum_circuits: 6
- detail: 2x3
- color: Natural
- flammability: 94V-2
- gender: Plug
- glow_wire_capable: No
- keying_to_mating_part: None
- lock_to_mating_part: Yes
- material: Nylon
- net_weight: 2.240/g
- number_of_rows: 2
- packaging_type: Bag
- panel_mount: Yes
- pitch_mating_interface: 6.30mm
- stackable: No
- operating_temperature_range: -40°C to +105°C
- maximum_current_per_contact: 9.0A
- elv: Not Relevant
- rohs: Compliant
- china_rohs: Not Contained
- halogen_free_status: Low-Halogen
- series: 1991
- mates_with: 19091061, 19091062
- use_with: 1189, 1190, 1380, 1381, 1433, 1434, 1973, 2151, 2273, 2870, 2871, 4272
- engineering_number: 1991-6P
- drawing_numbers: PK-1991-001-001, PS-02-09, PS-1991-015, PS-1991-016, 19910600-SD-000
